General Description
›
Components With Torque Specifications
›
Clutch Pipe And Hose
Clutch Pipe And Hose

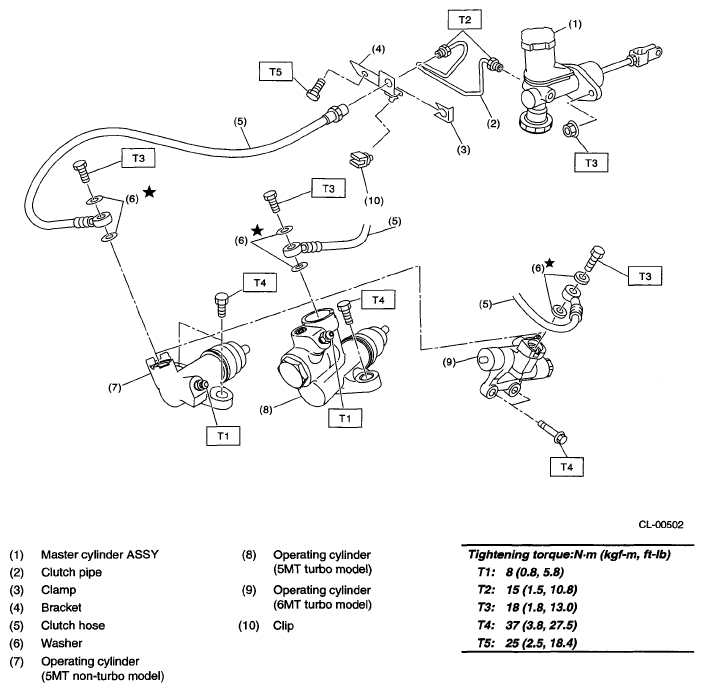

Fig 1: Clutch Pipe And Hose Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
