General Description
›
Components With Torque Specifications
›
Master Cylinder
Master Cylinder

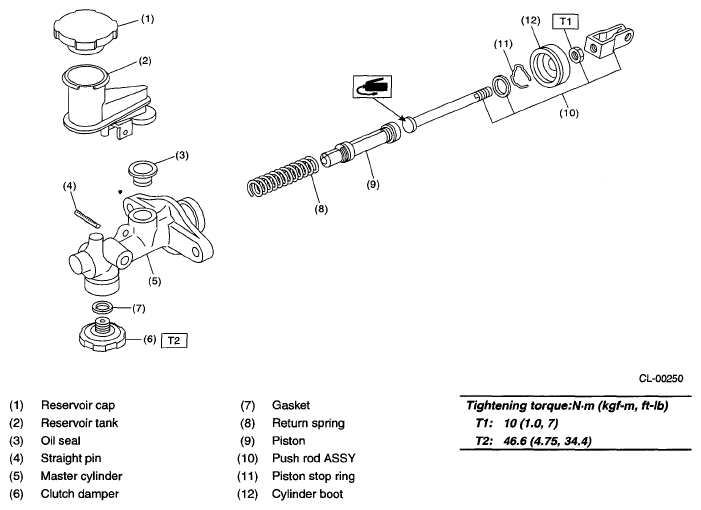

Fig 1: Master Cylinder Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
