Operating Cylinder
Operating Cylinder
5MT non-turbo model

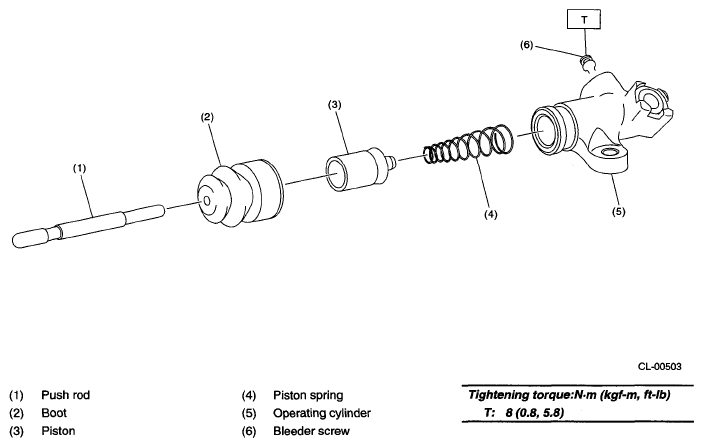

Fig 1: Operating Cylinder Replacement Components With Torque Specifications (5MT Non-Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
5MT turbo model

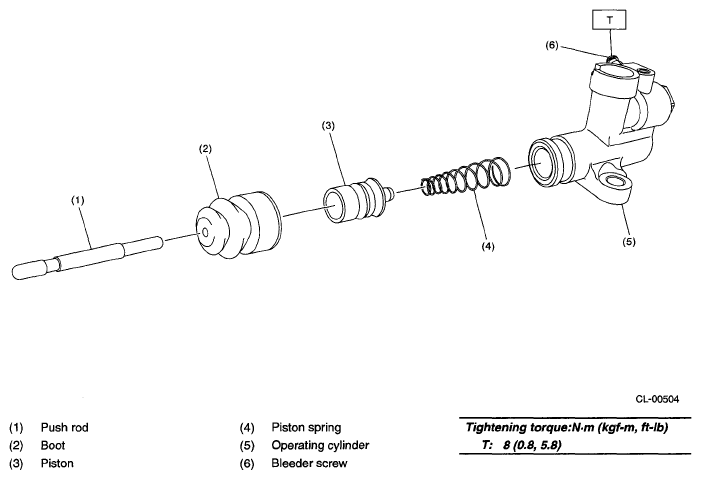

Fig 2: Operating Cylinder Replacement Components With Torque Specifications (5MT Turbo Model)
Courtesy of SUBARU OF AMERICA, INC.
