Control Module I/O Signal: Measurement: Waveform

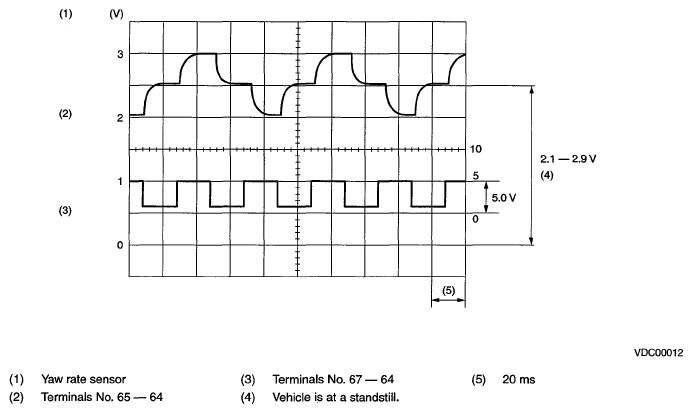

Fig 1: Input And Output Signal Voltages Waveform

G05658081

Fig 2: CAN Communication Line Diagram

G05658082
