Conditions For Abs Sequence Control

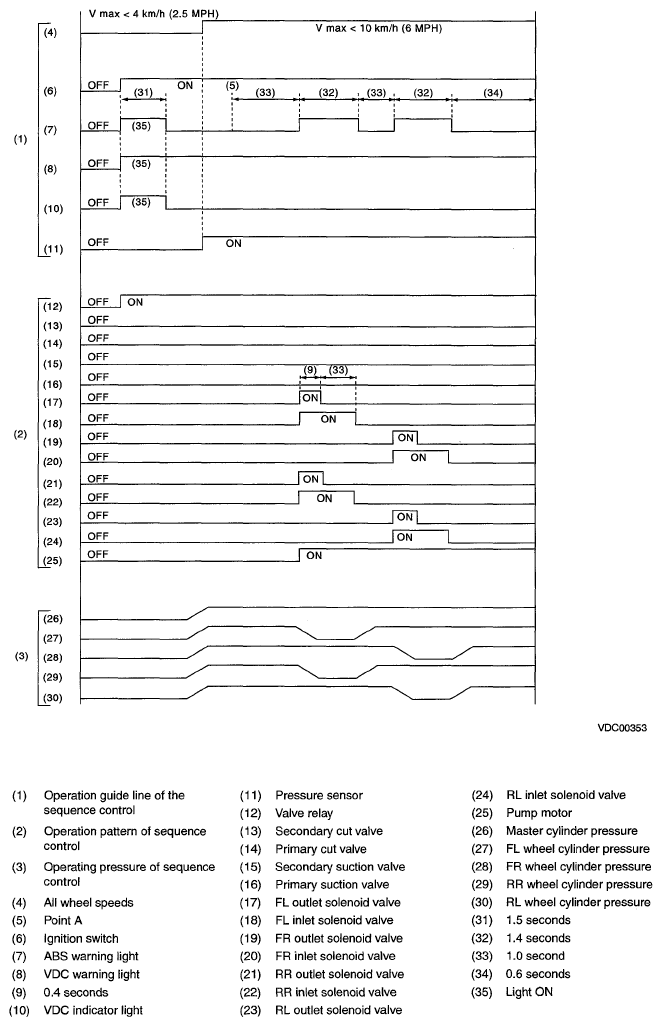

Fig 1: ABS Sequence Control Diagram

G05658053

NOTE: Operation starts from point A.
