Section 11 (Clutch System)
›
General Description
›
Components With Torque Specifications
›
Clutch Assembly
›
Turbo Model
Turbo Model
WARNING:
This page is about a different variant/trim than selected.

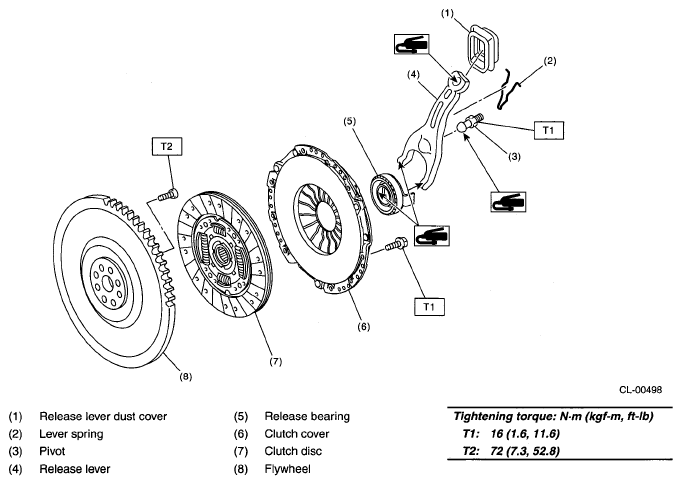

Fig 1: Clutch Assembly Replacement Components (Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
