Seat Belt System
›
General Description
›
Components With Torque Specifications
›
Rear Seat Belt
Rear Seat Belt

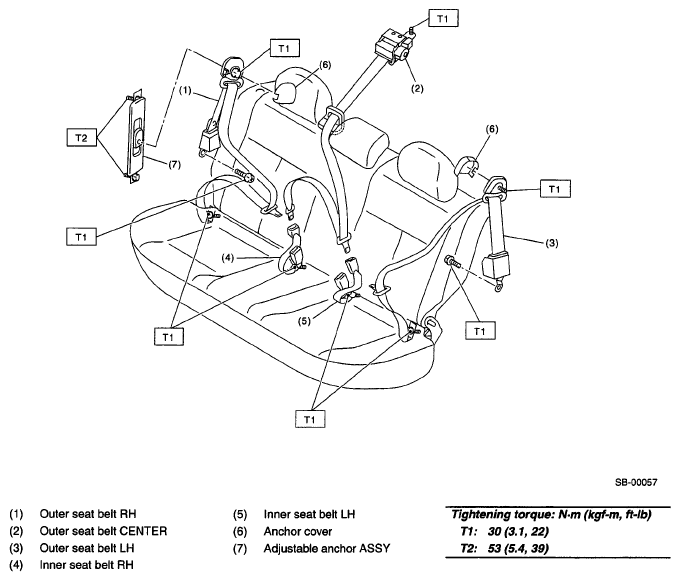

Fig 1: Rear Seat Belt Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
