Sub Frame: Removal

Lift-up the vehicle.
Remove the under cover.
Remove the bolt cover.

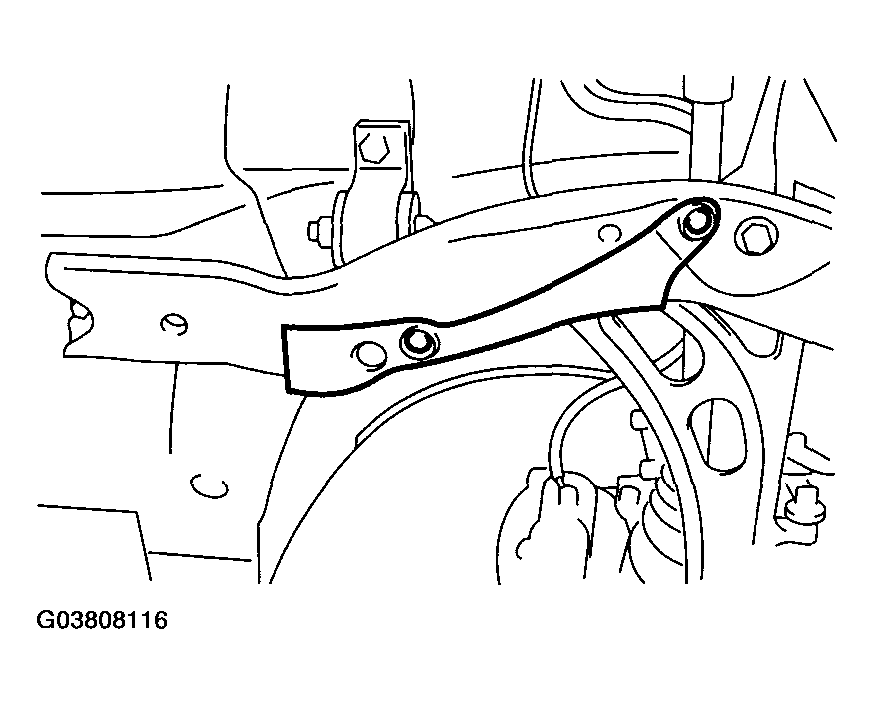

Fig 1: Identifying Under Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip.

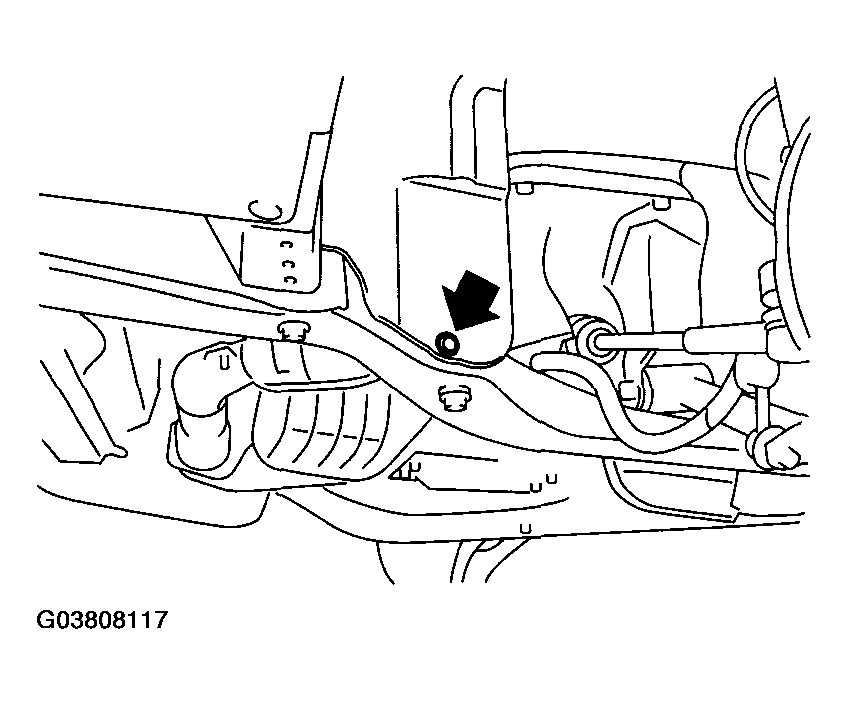

Fig 2: Identifying Clip
Courtesy of SUBARU OF AMERICA, INC.
Remove the sub frame.
NOTE: Loosen bolt (1) and leave a few threads caught, then remove the bolts in the order of (2), (3), (4), (5), and (6).

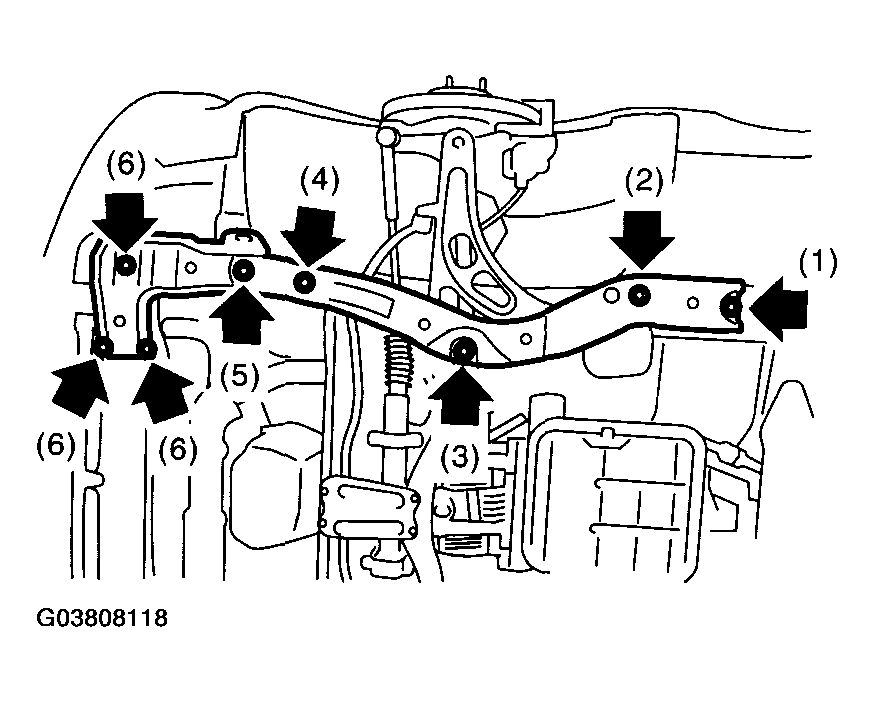

Fig 3: Identifying Subframe Bolts
Courtesy of SUBARU OF AMERICA, INC.
