Lateral Link: Disassembly

  1. Using the following table as a guide, verify the type of bushings.
  2. Select the ST according to type of bushings used.
    BUSHING REMOVER AND INSTALLER SET DETAILS

    Bushing ST: INSTALLER & REMOVER SET
    Bushing A 927700000
    Bushing B 927690000
    Bushing C 927700000
    Fig 1: Identifying DOJ Components
    G03808145Courtesy of SUBARU OF AMERICA, INC.

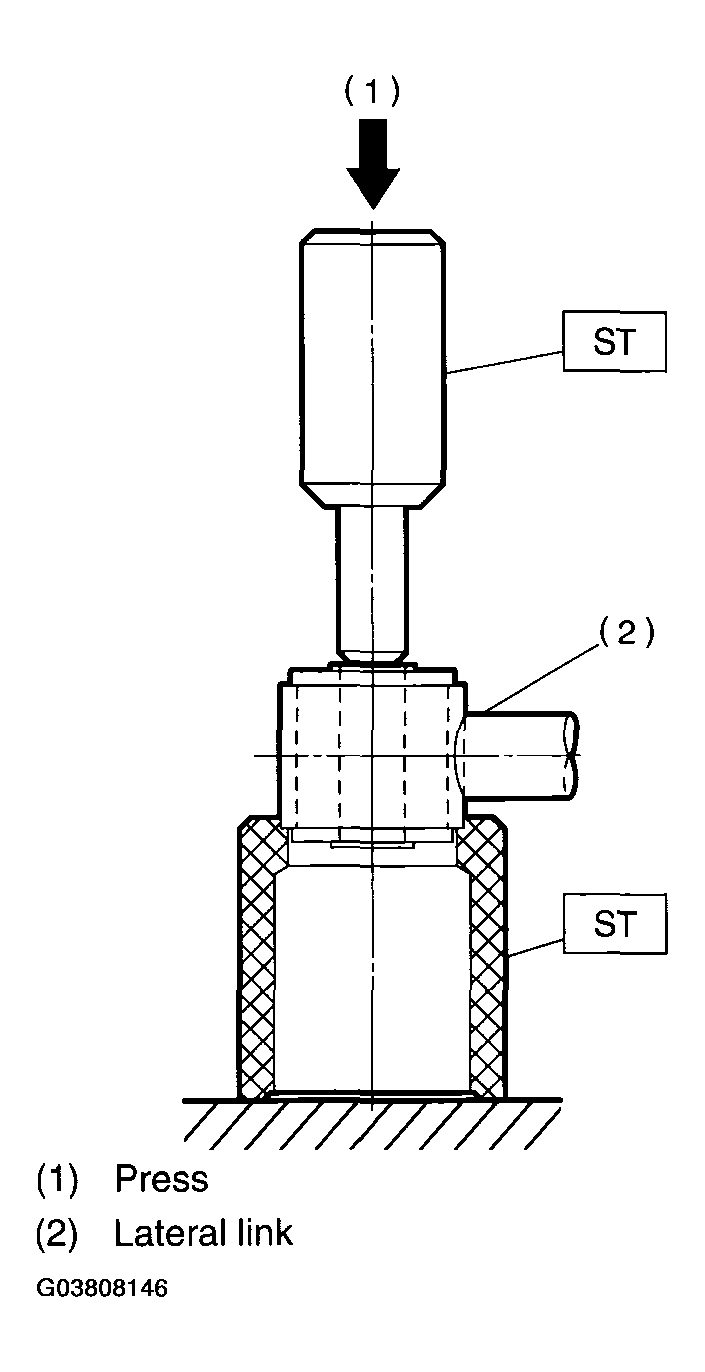

  3. Using the ST, press the bushing out of place.
    Fig 2: Identifying Bushing
    G03808146Courtesy of SUBARU OF AMERICA, INC.
