General Description
›
Components With Torque Specifications
›
Differential Gear
Differential Gear

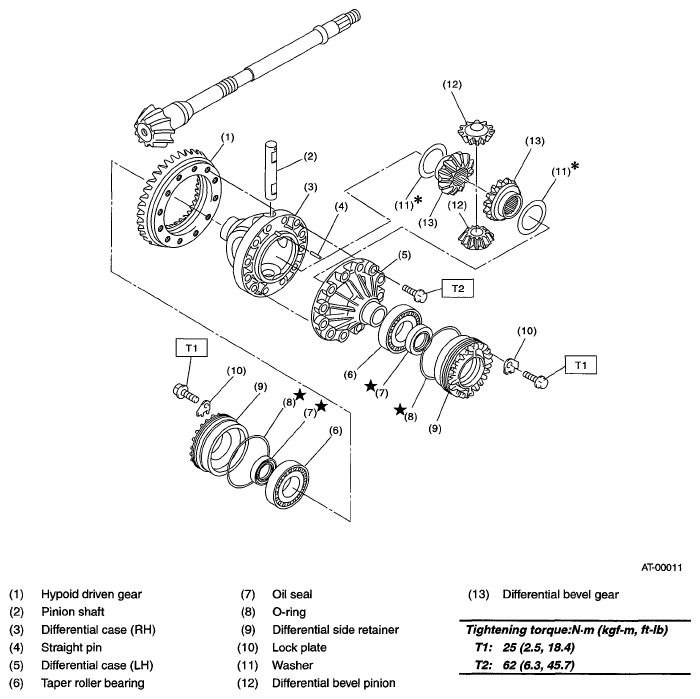

Fig 1: Identifying Differential Gear Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
