Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case
›
VTD Model
VTD Model

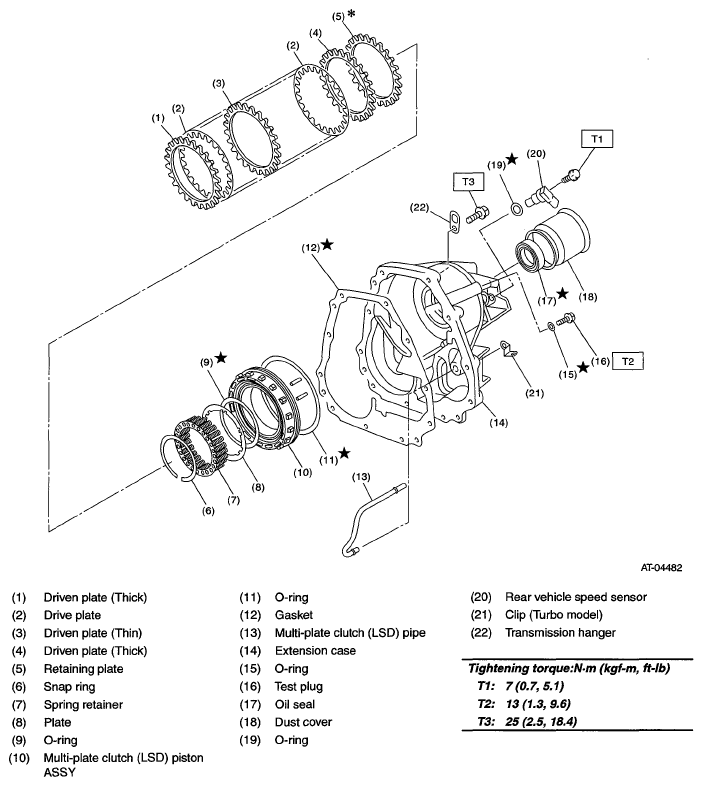

Fig 1: Identifying Transfer And Extension Case Components With Torque Specifications (VTD MODEL)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
