Front Hood Damper Stay

CAUTION:

Do not leave one side of damper stay removed.
Always perform works such as inspections and maintenance with both damper stays attached.

At the check and general maintenance

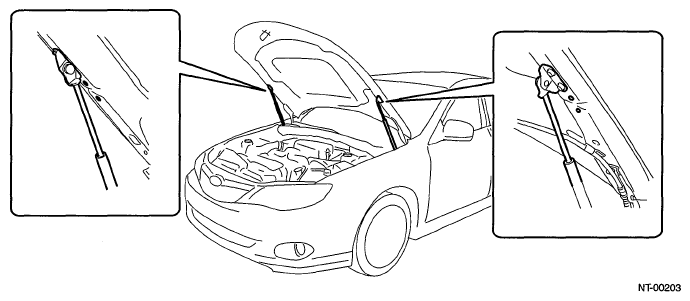

Fig 1: Identifying Front Hood Damper Stay

Courtesy of SUBARU OF AMERICA, INC.

When wider hood opening is necessary

Set the damper stay below as shown in the figure.

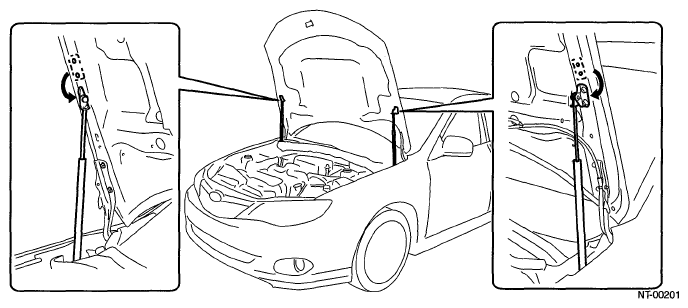

Fig 2: Identifying Rear Hood Damper Stay

Courtesy of SUBARU OF AMERICA, INC.
