Mechanism & Function -- Clutch System
›
Clutch
›
Clutch Control System
›
Turbo Models
Turbo Models

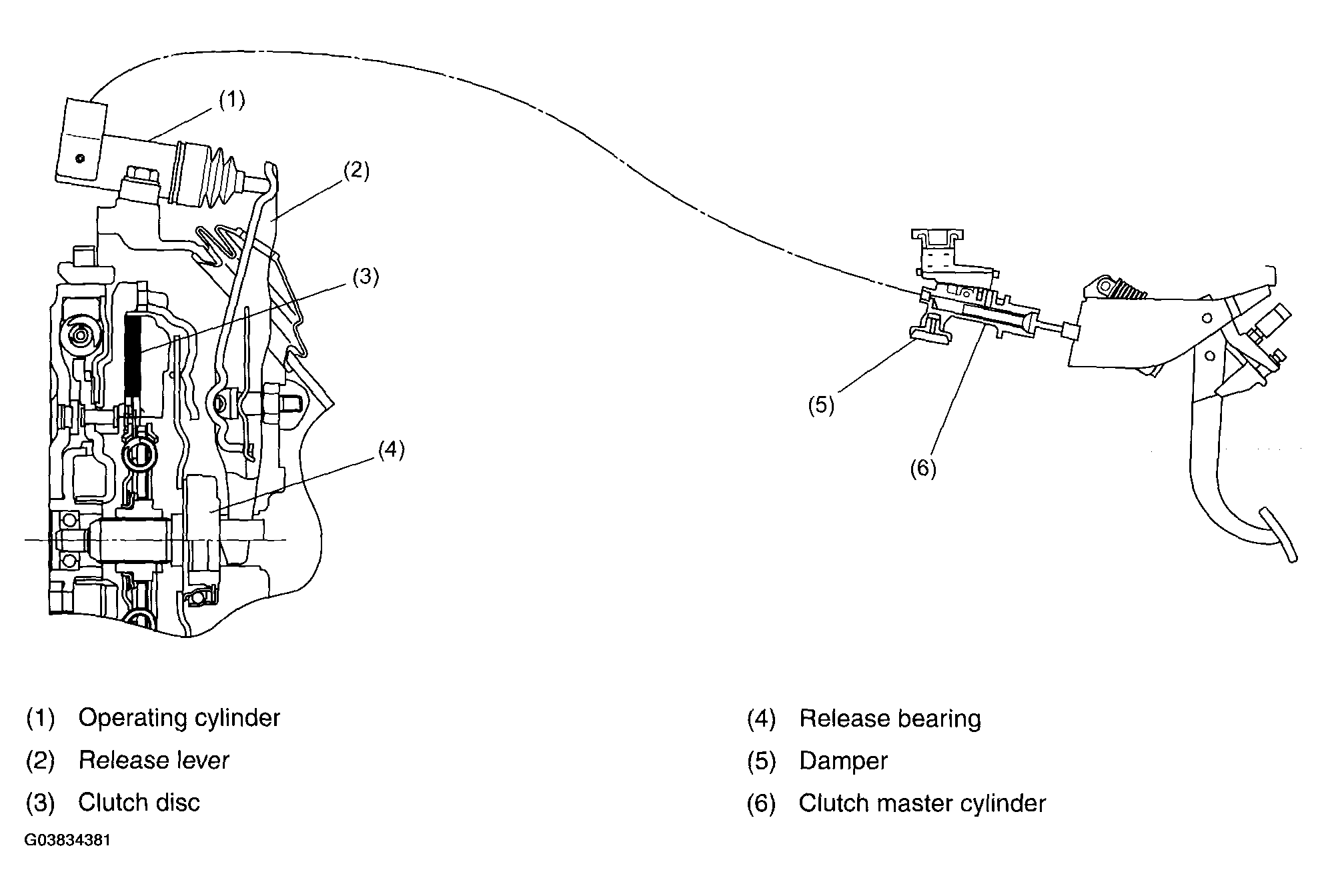

Fig 1: Identifying Components Of Clutch Control System (Turbo Models)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
