Engine Controls - Engine (Diagnostics) (H6DO): Electrical Component Location: Location: Engine

Control module

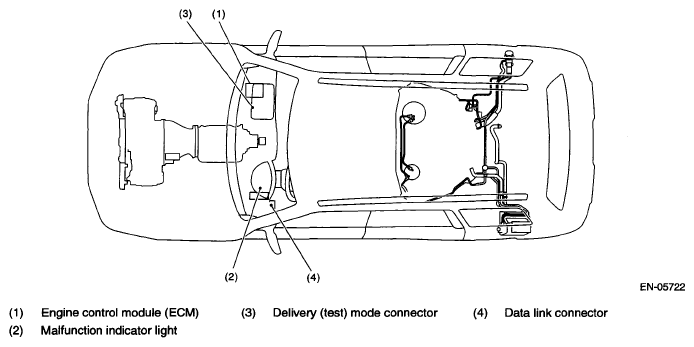

Fig 1: Identifying Engine Electrical Component Locations (Control Modules; 1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

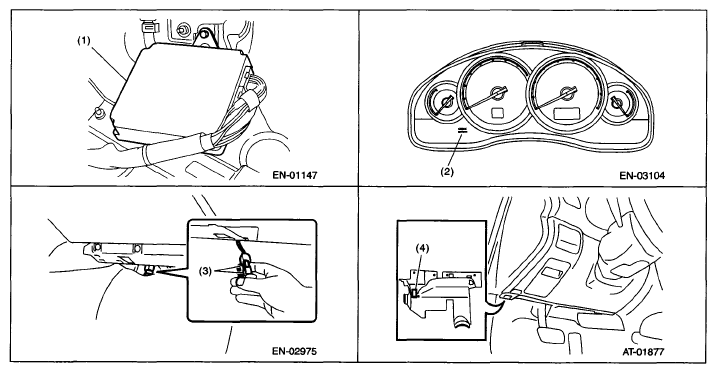

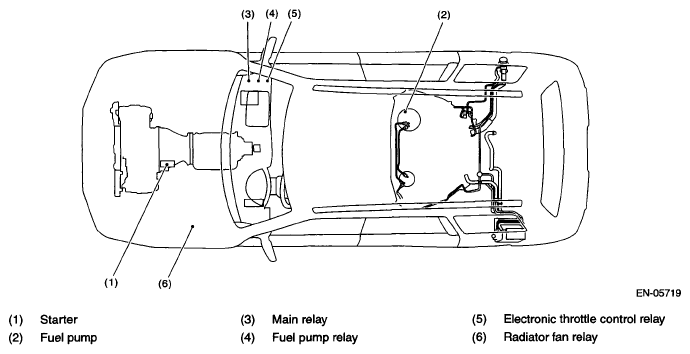

Fig 2: Identifying Engine Electrical Component Locations (Control Modules; 2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Sensor

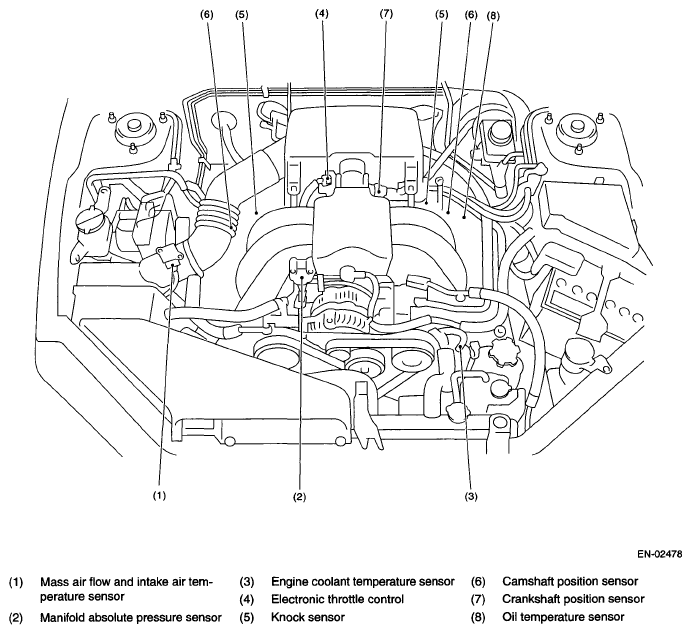

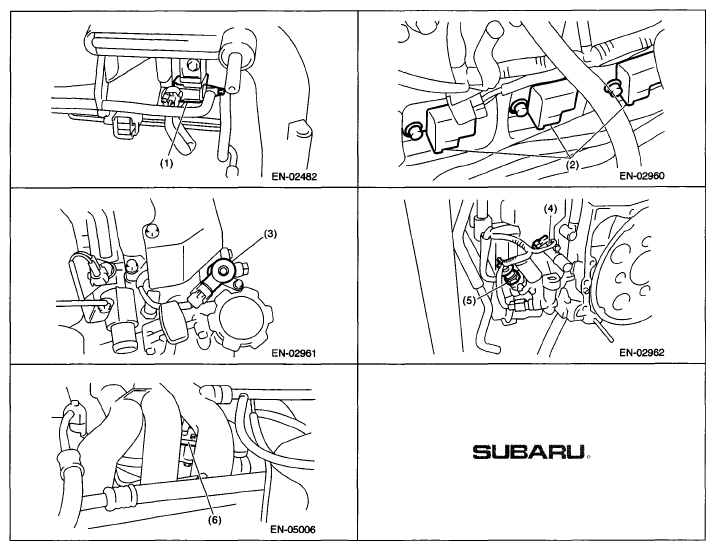

Fig 3: Identifying Engine Electrical Component Locations (Sensors; 1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

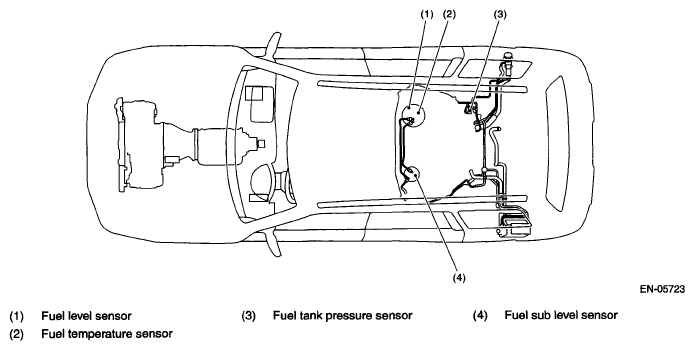

Fig 4: Identifying Engine Electrical Component Locations (Sensors; 2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

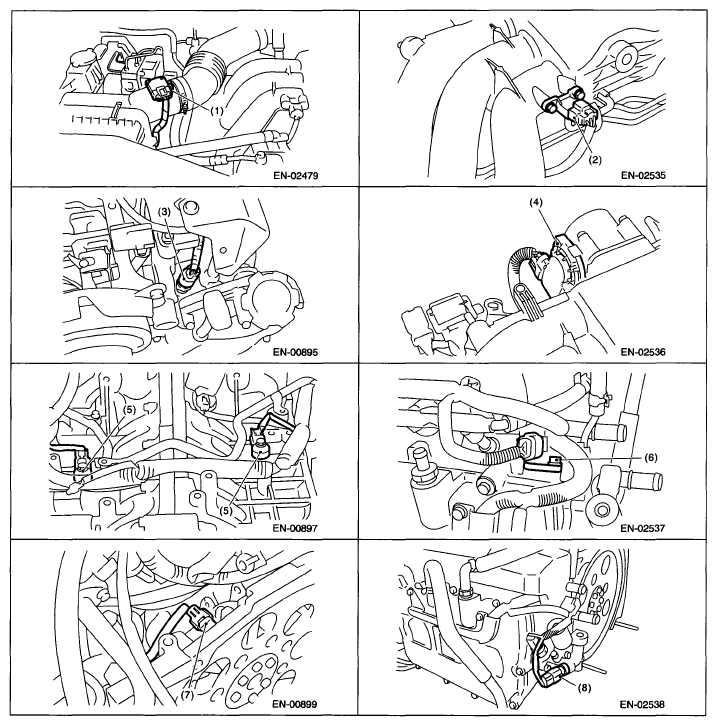

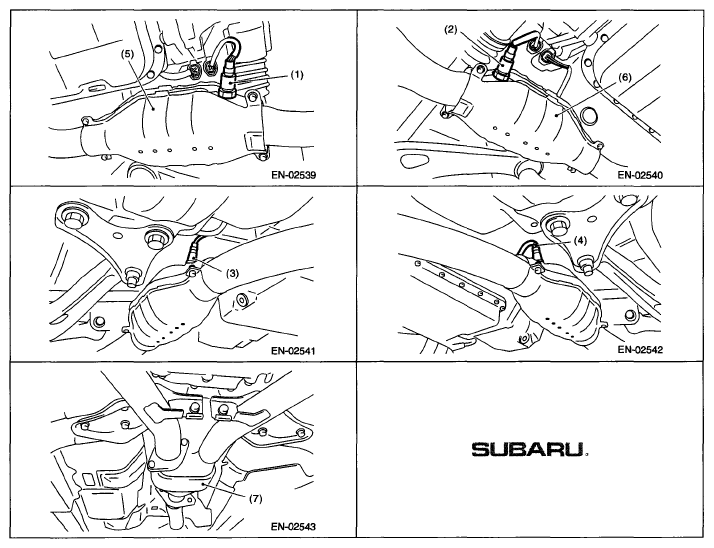

Fig 5: Identifying Engine Electrical Component Locations (Sensors; 3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying Engine Electrical Component Locations (Sensors; 4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

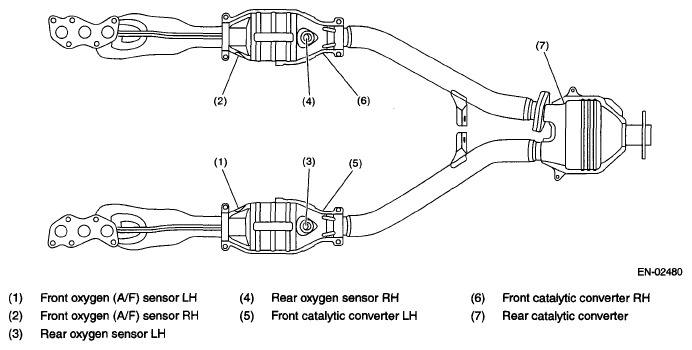

Fig 7: Identifying Engine Electrical Component Locations (Sensors; 5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Engine Electrical Component Locations (Sensors; 6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
Solenoid valve, actuator, emission control system parts and ignition system parts

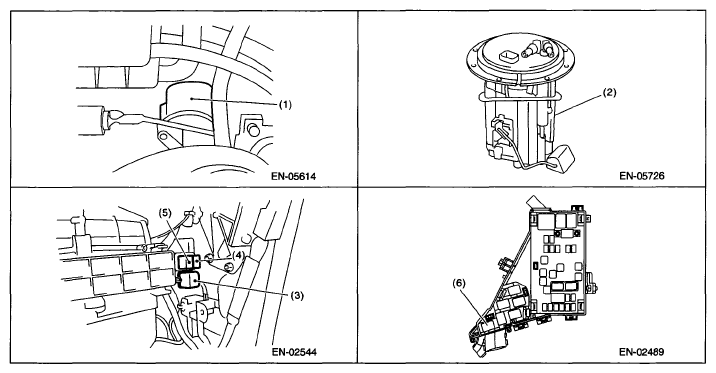

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (1 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

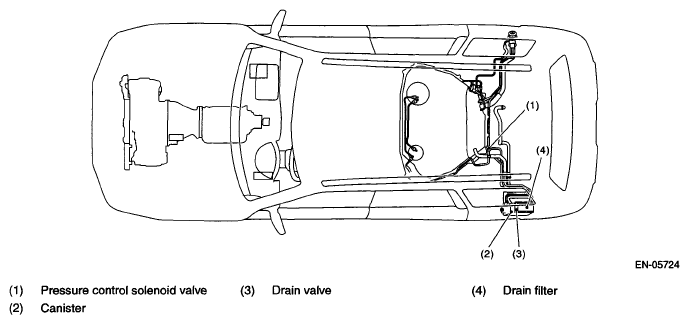

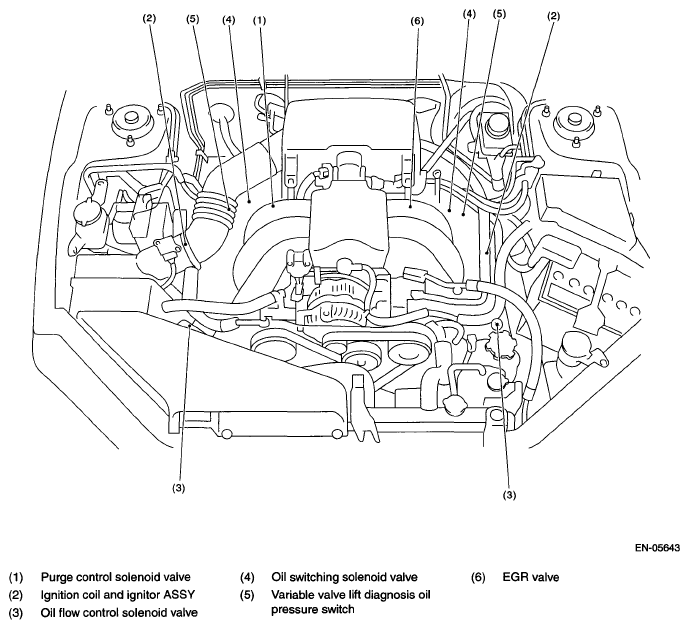

Fig 10: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (2 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

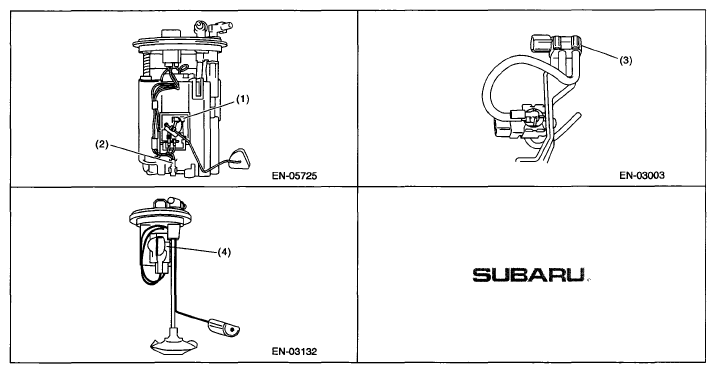

Fig 11: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (3 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (4 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (5 Of 6)
Courtesy of SUBARU OF AMERICA, INC.

Fig 14: Identifying Solenoid Valve, Actuator, Emission Control System And Ignition System Components (6 Of 6)
Courtesy of SUBARU OF AMERICA, INC.
