General Description
›
Components With Torque Specifications
›
Wagon Model
Wagon Model

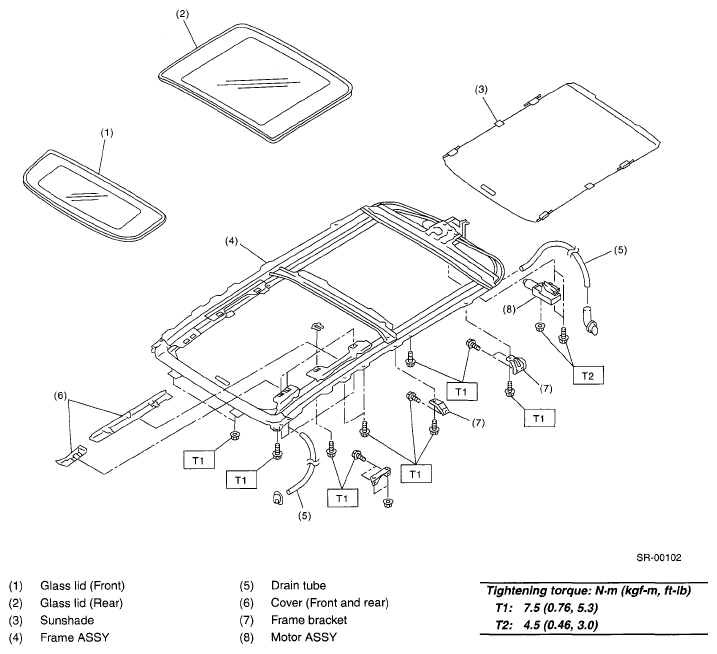

Fig 1: Sunroof Replacement Components With Torque Specifications (Wagon Model)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
