General Description
›
Components With Torque Specifications
›
Rear Differential Mounting System
Rear Differential Mounting System

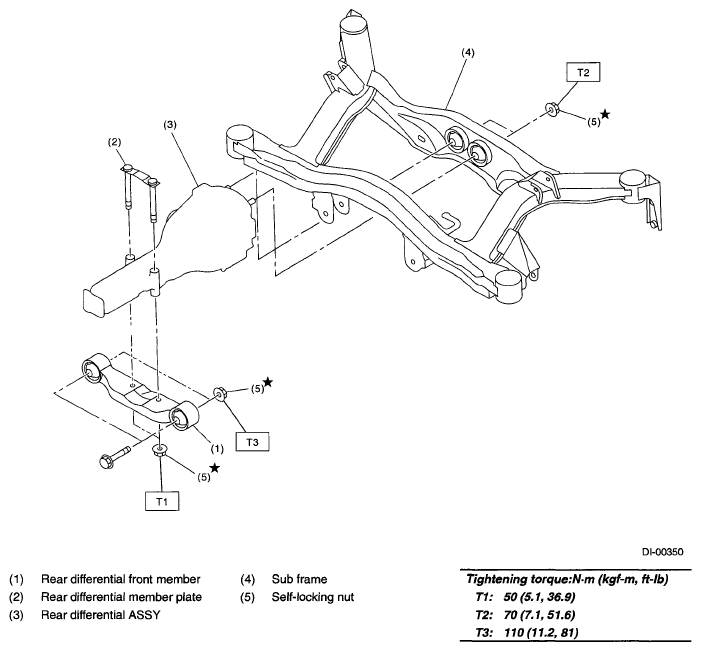

Fig 1: Rear Differential Mounting System Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
