Starting System & Charging System (H4SO)
›
General Description
›
Components With Torque Specifications
›
Generator
Components With Torque Specifications: Generator

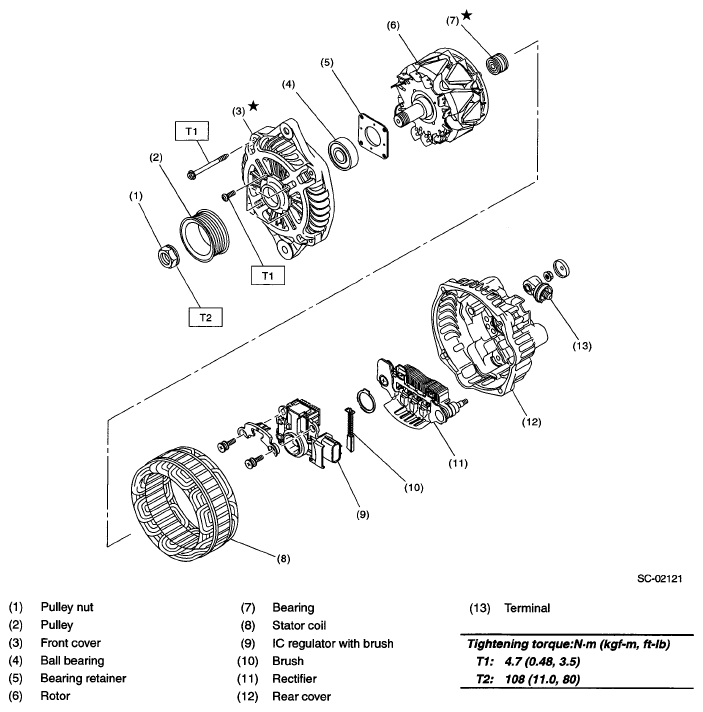

Fig 1: Generator Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
