Cylinder Block: Disassembly

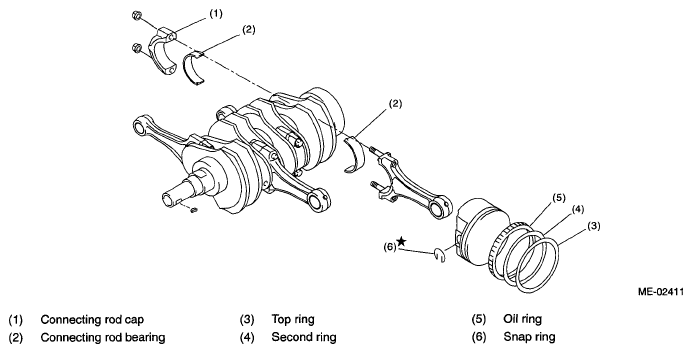

Fig 1: Identifying Connecting Rod Bearing And Cap, Second Ring, Oil Ring, Top Ring And Snap Ring

Courtesy of SUBARU OF AMERICA, INC.

1. Remove the connecting rod cap.
2. Remove the connecting rod bearing.
   NOTE: Keep the removed connecting rods, connecting rod caps and bearings in order so that they are kept in their original combinations/groups, and not mixed together.
3. Remove the piston rings using piston ring expander.
4. Remove the oil ring by hand.
   NOTE: Arrange the removed piston rings in proper order, to prevent confusion.
5. Remove the snap ring.
