Center Console: Removal

WARNING: This page is about a different car, the 2007 Subaru Outback and 2007 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the console box. < Ref. to REMOVAL , Console Box. >
Remove the console front panel.

Fig 1: Identifying Console Front Panel Hooks
Courtesy of SUBARU OF AMERICA, INC.

NOTE: For the AT model, remove the ring indicator. For the MT model, remove the shift knob.
Loosen the screw, remove the hook, and remove the console side garnish.

Fig 2: Identifying Console Side Garnish Hook
Courtesy of SUBARU OF AMERICA, INC.
Remove the instrument panel lower cover. < Ref. to REMOVAL , Instrument Panel Lower Cover. >

Fig 3: Identifying Instrument Panel Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip at the tip of the console side panel.

Fig 4: Locating Clip At Tip Of Console Side Panel
Courtesy of SUBARU OF AMERICA, INC.
Remove the passenger's side front inside scuff plate (A) and front pillar lower trim (B). < Ref. to REMOVAL , Lower Inner Trim. >

Fig 5: Identifying Passenger'S Side Front Inside Scuff Plate And Front Pillar Lower Trim
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips, and remove the glove box lower cover.

Fig 6: Identifying Glove Box Lower Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the screws, and remove the console side panel.

Fig 7: Locating Console Side Panel Screws
Courtesy of SUBARU OF AMERICA, INC.
Loosen screws to pull out the audio unit assembly, and disconnect the connectors to remove.

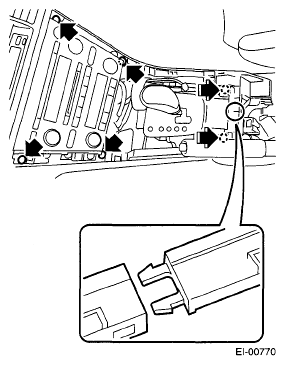

Fig 8: Locating Audio Unit Assembly Screws
Courtesy of SUBARU OF AMERICA, INC.

NOTE: The audio unit assembly can be removed without removing the console side panel.
