Wheel Alignment: Inspection: Notes
WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
Check the following items before taking wheel alignment measurement.
Check items before taking wheel alignment measurement:
- Tire inflation pressure
- Unbalanced right and left tire wear, size difference
- Tire runout
- Excessive play and wear in ball joint
- Excessive play and wear in tie rod end
- Excessive play in wheel bearing
- Right and left wheel base imbalance
- Deformation and excessive play in steering link
- Deformation and excessive play in suspension parts

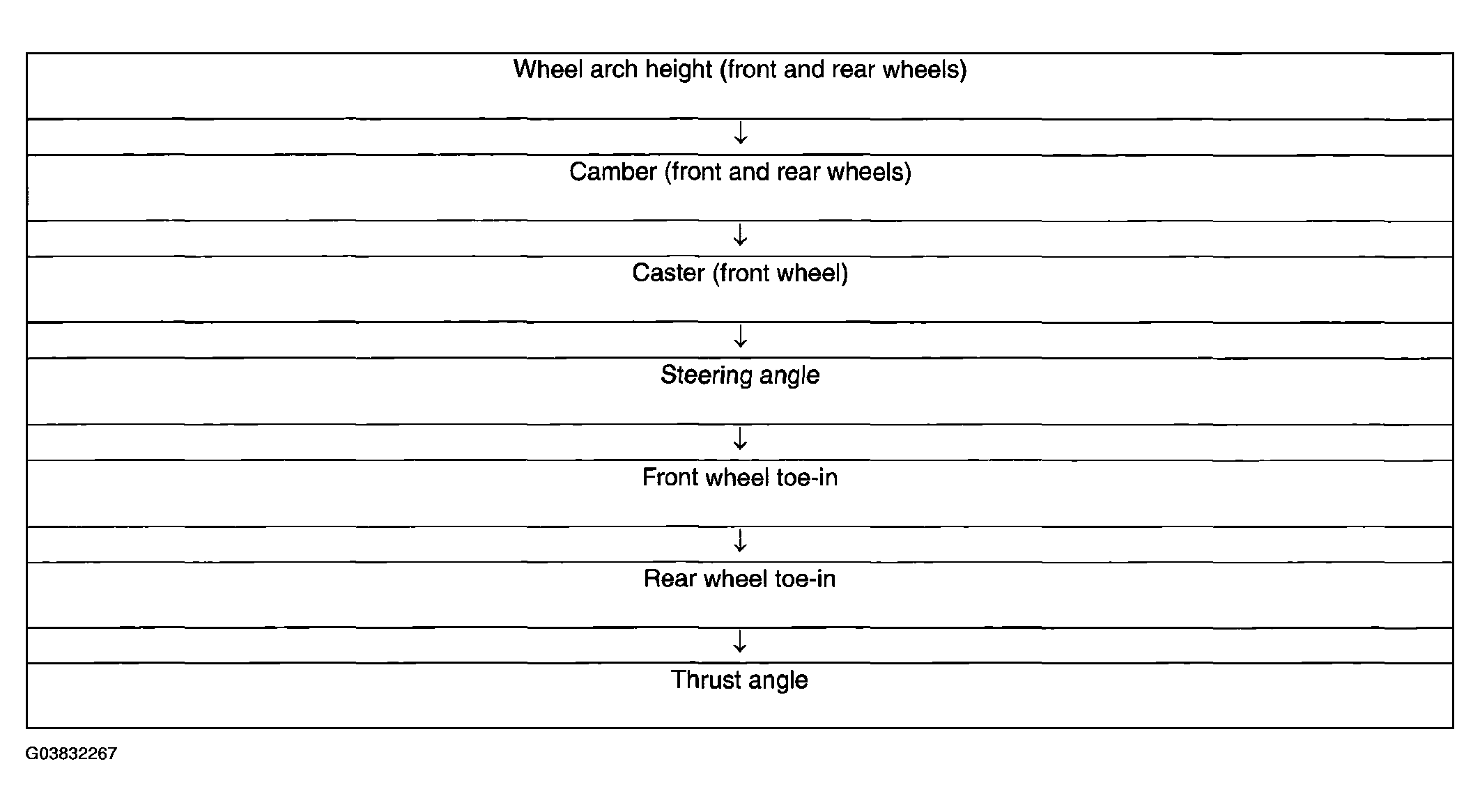

Check, adjust and measure the wheel alignment in accordance with the procedures indicated in Fig 1 .
