Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The illustration below is for a 5MT non-turbo model. However, perform the same procedures for models other than 5MT non-turbo model as well.

Insert the ST into the clutch disc and attach to the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful to attach in the correct direction.

ST 499747100 CLUTCH DISC GUIDE

Fig 1: Inserting ST Into Clutch Disc
Courtesy of SUBARU OF AMERICA, INC.
Install the clutch cover to the flywheel and tighten the bolts to the specified torque.
NOTE:
- When installing the clutch cover to the flywheel, position the clutch cover so that the distance between unbalance marks (• paint marks) is at least 120°. (The unbalance marks • indicate the directions of residual unbalance.)
- Note the front and rear of the clutch disc when installing.
- Tighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

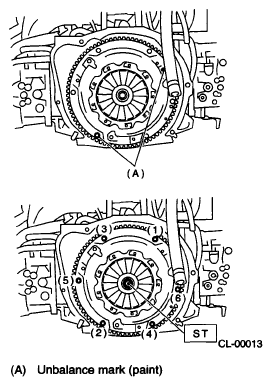

Fig 2: Identifying Tightening Sequence Of Clutch Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. < Ref. to INSTALLATION - 5MT , Manual Transmission Assembly . > < Ref. to INSTALLATION - 6MT , Manual Transmission Assembly . >
