Components With Torque Specifications: INTERCOOLER

WARNING: This page is about a different variant/trim than selected.

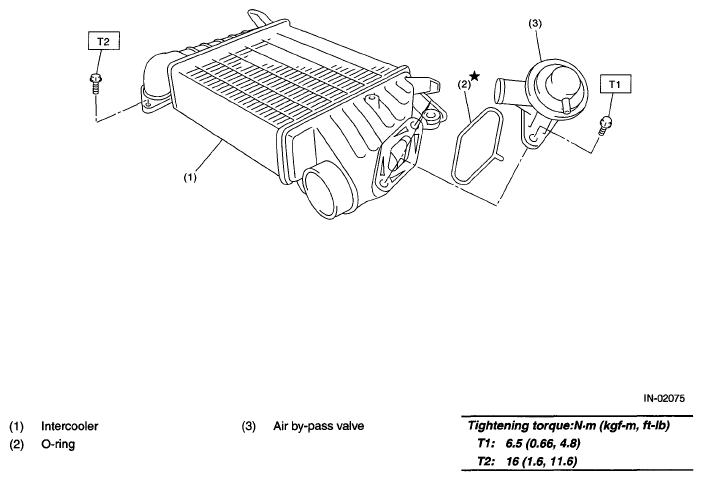

Fig 1: Intercooler, Air By-Pass Valve And O-Ring With Torque Specifications
G05340341Courtesy of SUBARU OF AMERICA, INC.
