General Description
›
Components With Torque Specifications
›
Rear Suspension
Rear Suspension

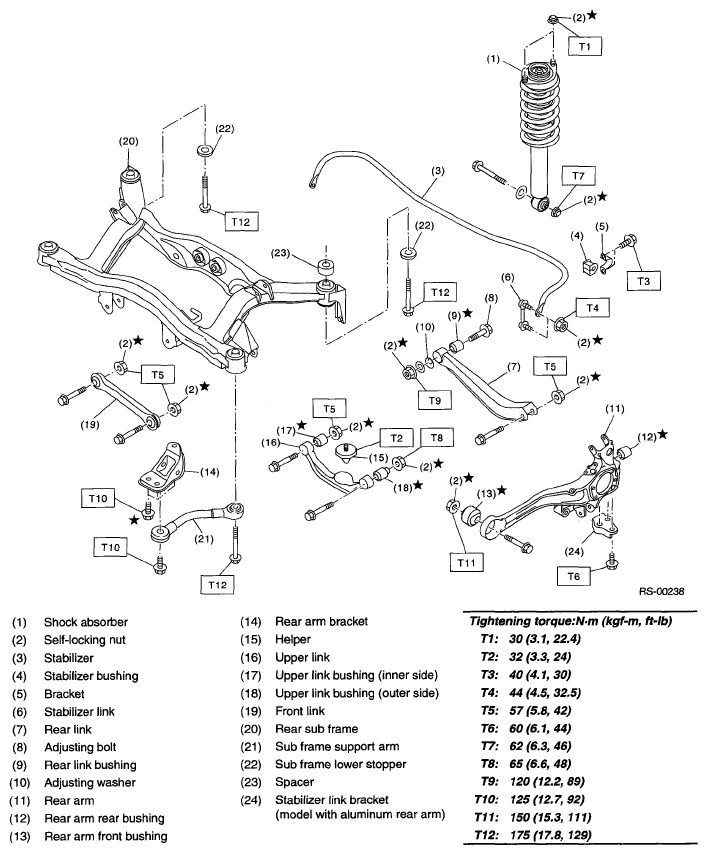

Fig 1: Exploded View Of Rear Suspension With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
