Rear Arm: Removal

Lift up the vehicle, and then remove the rear wheels.
Remove the sub frame support arm.
<Ref. to REMOVAL , Sub Frame Support Arm.>
Remove the bearing unit.
<Ref. to REMOVAL , Rear Hub Unit Bearing.>
Hang the back plate from sub frame.

Fig 1: Hanging Back Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the parking brake cable clamp to the rear arm bracket.

Fig 2: Locating Parking Brake Cable Clamp Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds the brake hose bracket and ABS wheel speed sensor bracket to the rear arm.

Fig 3: Locating ABS Wheel Speed Sensor Bracket Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which secure the brake hose bracket to the rear arm. Remove the bolts which secure the ABS wheel speed sensor to the rear arm.

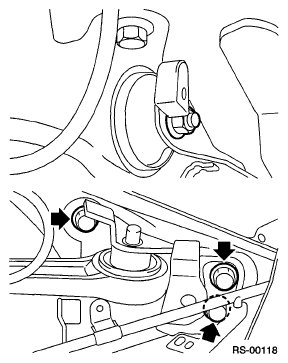

Fig 4: Locating Brake Hose Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the stabilizer link from the rear arm.

Fig 5: Locating Stabilizer Link Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the shock absorber from the rear arm.

Fig 6: Locating Shock Absorber Bolt
Courtesy of SUBARU OF AMERICA, INC.
Support the rear arm horizontally using a transmission jack.

Fig 7: Supporting Rear Arm Using Transmission Jack
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which hold the rear arm to bracket. Remove the bolts and then remove the rear frame bracket.

Fig 8: Locating Rear Arm Nuts
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nut which holds the front link to the rear arm.

Fig 9: Locating Front Link Nut
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nut which holds the rear link to the rear arm.

Fig 10: Locating Rear Link Nut
Courtesy of SUBARU OF AMERICA, INC.
Loosen the nut which holds the upper link to the rear arm.

Fig 11: Locating Upper Link Nut
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the rear arm to the link, and then remove the rear arm.
