General Description
›
Components With Torque Specifications
›
Reduction Gear
›
VTD model
VTD model

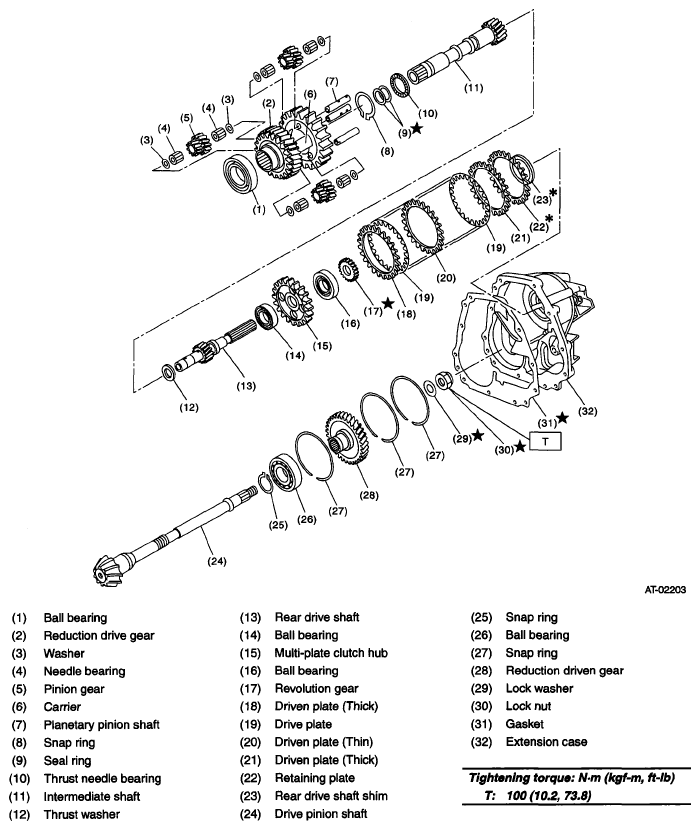

Fig 1: Identifying Reduction Gear Components - VTD Model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
