Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Transmission Mounting
Transmission Mounting

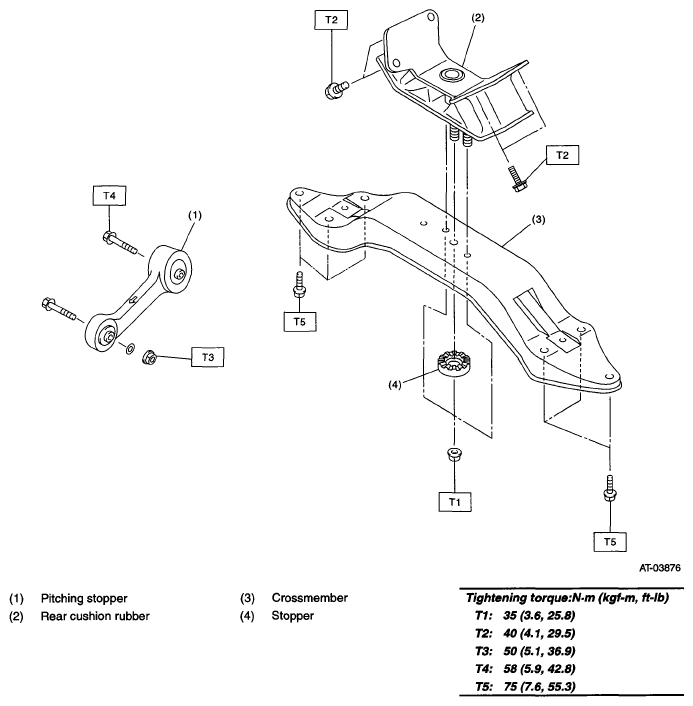

Fig 1: Transmission Mounting Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
