AT Shift Lock Control System: Wiring Diagram

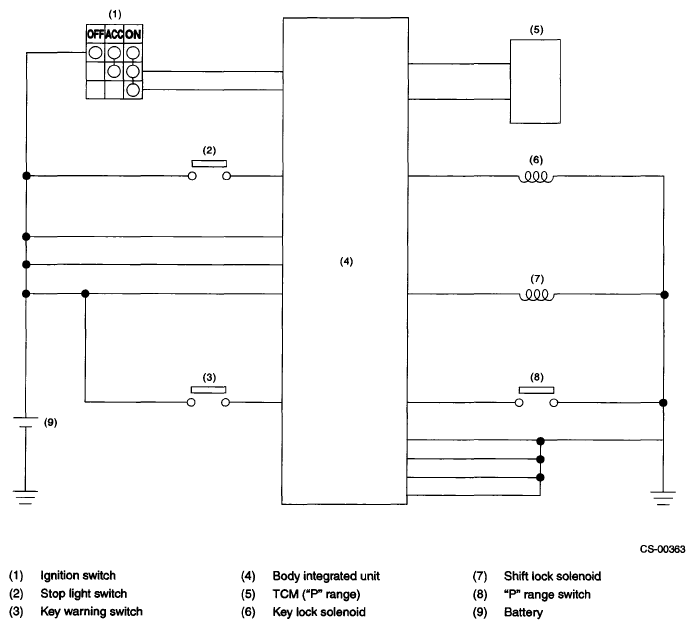

Fig 1: Ignition Switch And Stop Light Switch - Wiring Diagram
G05666101Courtesy of SUBARU OF AMERICA, INC.
