General Description
›
Components With Torque Specifications
›
Timing Belt
Timing Belt

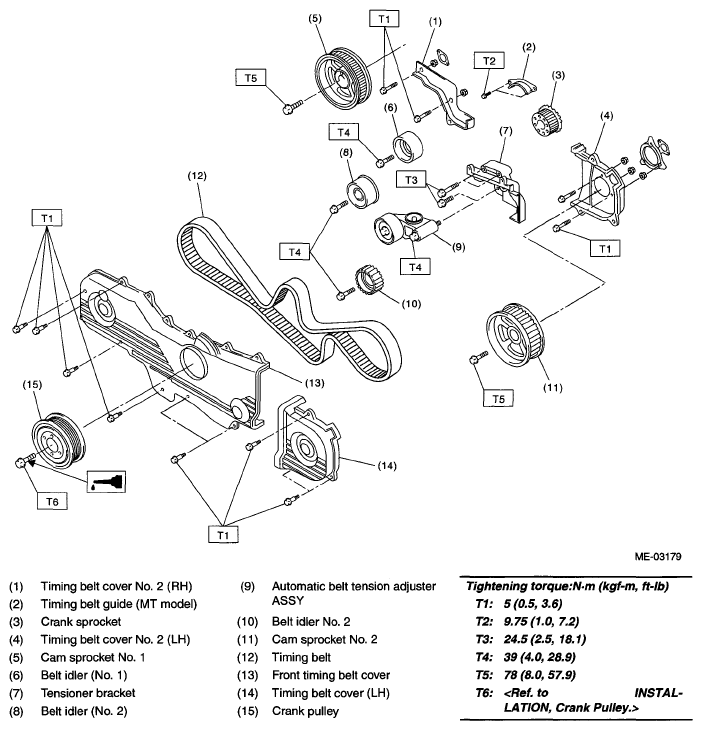

Fig 1: Timing Belt Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
