Cylinder Block

WARNING: This page is about a different car, the 2006 Subaru Outback and 2006 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

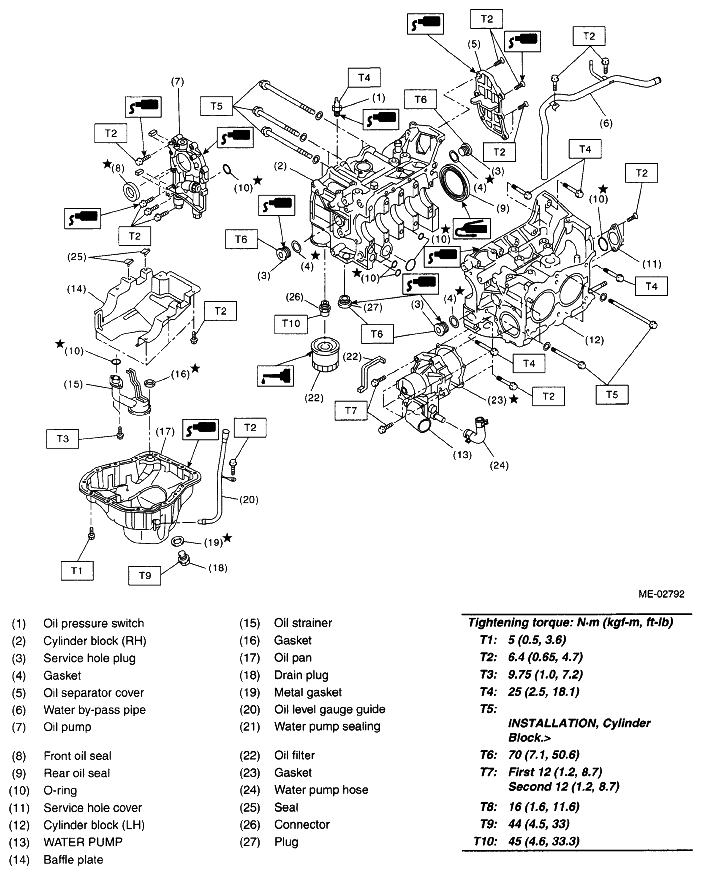

Fig 1: Cylinder Block Replacement Components With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.
