Combination Meter: Disassembly: Notes
WARNING: This page is about a different car, the 2008 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
- Be careful not to apply excessive force to the trip knob.
- Be sure not to touch the meter indicator needle.

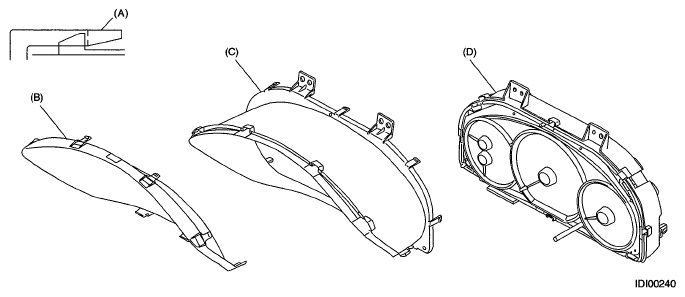

Disengage claw (A), and remove the meter glass assembly (B) and meter visor (C) from meter case assembly (D).
