Section 16 (Automatic Transmission (5AT))
›
General Description
›
Components With Torque Specifications
›
Control Valve & Transmission Harness
Control Valve & Transmission Harness
WARNING:
This page is about a different variant/trim than selected.

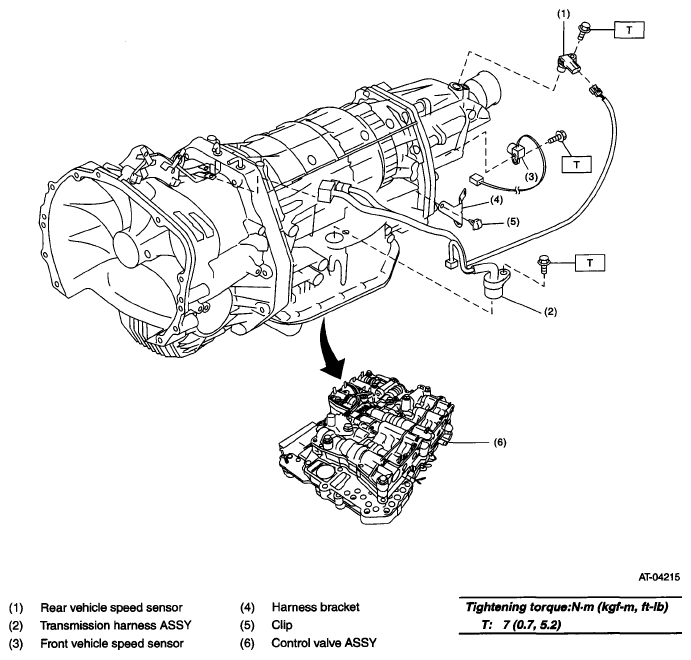

Fig 1: Control Valve & Transmission Harness Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
