Section 16 (Automatic Transmission (5AT))
›
General Description
›
Components With Torque Specifications
›
Transmission Control Device & Parking Support
Transmission Control Device & Parking Support
WARNING:
This page is about a different variant/trim than selected.

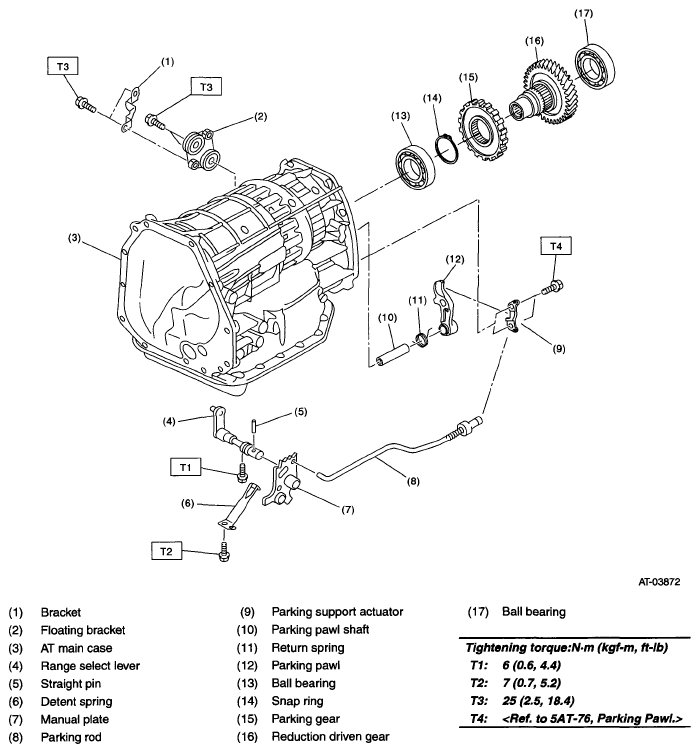

Fig 1: Transmission Control Device & Parking Support Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
