Section 23 (Engine Mechanical (H6DO))
›
General Description
›
Components With Torque Specifications
›
Timing Chain Cover
Timing Chain Cover
WARNING:
This page is about a different variant/trim than selected.

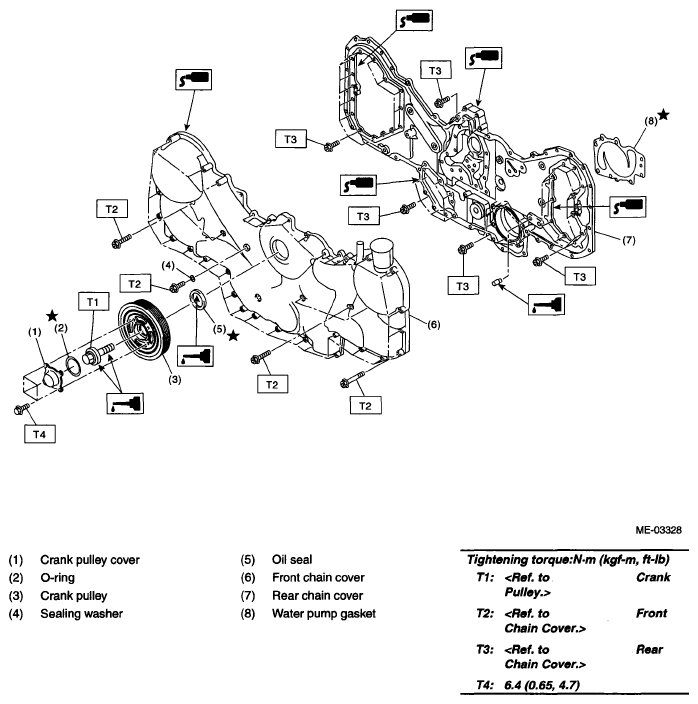

Fig 1: Identifying Timing Chain Cover Components
Courtesy of SUBARU OF AMERICA, INC.
