Timing Chain

WARNING: This page is about a different variant/trim than selected.

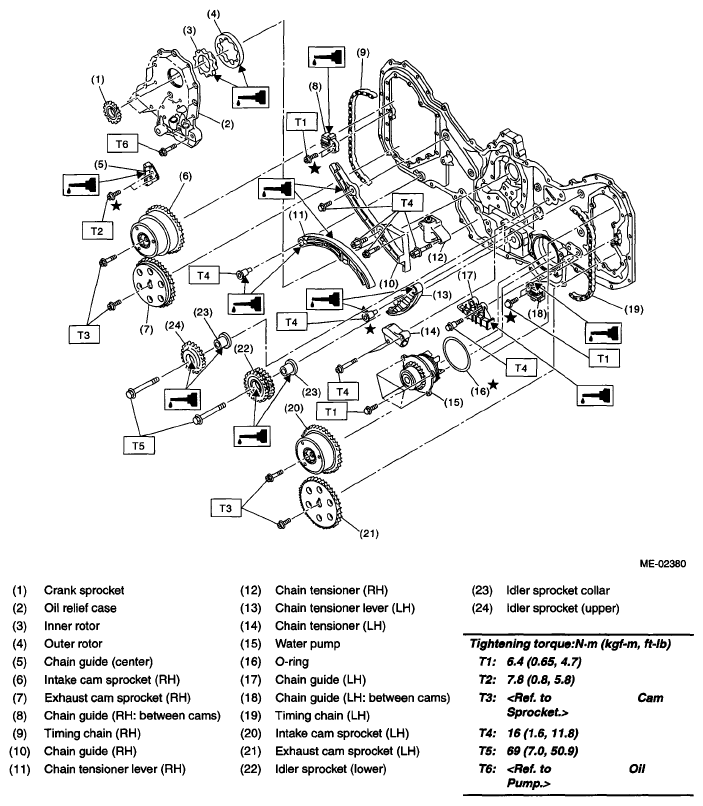

Fig 1: Identifying Timing Chain Components
G05665479Courtesy of SUBARU OF AMERICA, INC.
