Airbag System: General Description: Caution

When servicing a vehicle, be sure to turn the ignition switch to OFF, disconnect the ground cable from battery, and wait for 20 seconds or more before starting work.
The airbag system is fitted with a backup power source. After disconnecting the battery ground cable, the airbag may deploy if you do not wait for 20 seconds or more before starting airbag system servicing.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
If sensors, airbag module, airbag control module, pretensioner or harness is deformed or damaged, replace with new part.

Fig 2: Precaution For Replacing Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
Do not use the airbag system and pretensioners on other vehicles. When replacing parts, be sure to replace them with new parts.
When checking the airbag system, be sure to use a digital circuit tester. Use of an analog circuit tester may cause the airbag to activate erroneously due to a minimal current inside tester.

Fig 3: Precaution For Checking Airbag System
Courtesy of SUBARU OF AMERICA, INC.
When checking, use a test harness (1). Damage to connector terminal causes malfunction. Do not directly put the tester probe on airbag connector terminal.

Fig 4: Precaution For Airbag System - Do Not Put Tester Probe On Airbag Connector Terminal
Courtesy of SUBARU OF AMERICA, INC.
Do not drop the airbag system parts, or keep them at high temperature of 93°C (199°F) or more, or let water, oil or grease get on them; the internal parts may be damaged and reliability greatly lowered.

Fig 5: Precaution For Airbag System - Do Not Drop Airbag System Parts
Courtesy of SUBARU OF AMERICA, INC.
If damage, open circuit or rust is found on airbag system wiring harness, do not use a soldering equipment to repair. Replace the faulty harness with a new genuine part.

Fig 6: Precaution For Do Not Use Soldering Equipment To Repair
Courtesy of SUBARU OF AMERICA, INC.
Install the wiring harness securely with the specified clips to avoid interference or tangled with other parts.

Fig 7: Precaution For Wiring Harness Securely With Specified Clips
Courtesy of SUBARU OF AMERICA, INC.
Do not allow water or oil to come in contact with the connector terminals. Also do not touch the connector terminals.

Fig 8: Precaution For Connector Terminals
Courtesy of SUBARU OF AMERICA, INC.
The driver's, passenger's, side, curtain airbag modules, and the pretensioner must not be disassembled.

Fig 9: Precaution For Driver's, Passenger's, Side, Curtain Airbag Modules Not Disassembled
Courtesy of SUBARU OF AMERICA, INC.
The airbag module cannot be used again if deployed once.
After removal, keep the airbag module with the pad side facing upward on a dry, clean and flat surface away from heat, light sources, moisture and dust.

Fig 10: Identifying Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
Do not check continuity of the airbag modules for driver's side, passenger's side and curtain, or the pretensioner.

Fig 11: Precaution For Do Not Check Continuity Of Airbag Modules
Courtesy of SUBARU OF AMERICA, INC.
The removed front seat with airbag module must be kept at least 200 mm (8 in) away from walls and other objects.

Fig 12: Identifying Distance Between Front Seat And Wall
Courtesy of SUBARU OF AMERICA, INC.
When painting or performing sheet metal work on the front part of the vehicle, including the front wheel apron, front fender and front side frame, remove the front sub sensors and wiring harness of airbag system.
When painting or performing sheet metal work on the side of the vehicle, including the side sill, center pillar and front and rear doors, remove the side airbag sensors and wiring harness of the air-bag system.

Fig 13: Precaution For Painting Or Performing Sheet Metal Work On Side Of Vehicle
Courtesy of SUBARU OF AMERICA, INC.
Do not discard undeployed airbag module. They could easily cause a serious accident if accidentally deployed.

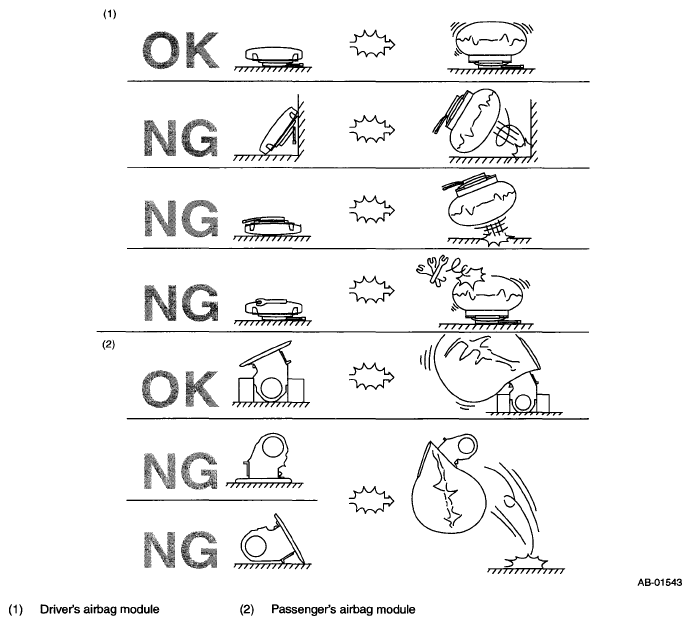

When storing a removed airbag module, do not place it with the pad side facing downward. Do not place any objects on the airbag module. Do not pile airbag modules on top of each other. If the airbag inflates for some reason when an airbag module pad is touching other objects, it may cause serious accident.

Fig 14: Precaution For Storing Removed Airbag Module
Courtesy of SUBARU OF AMERICA, INC.
