Mechanism & Function -- Airbag System
›
System Components and Operation
›
System Components
System Components

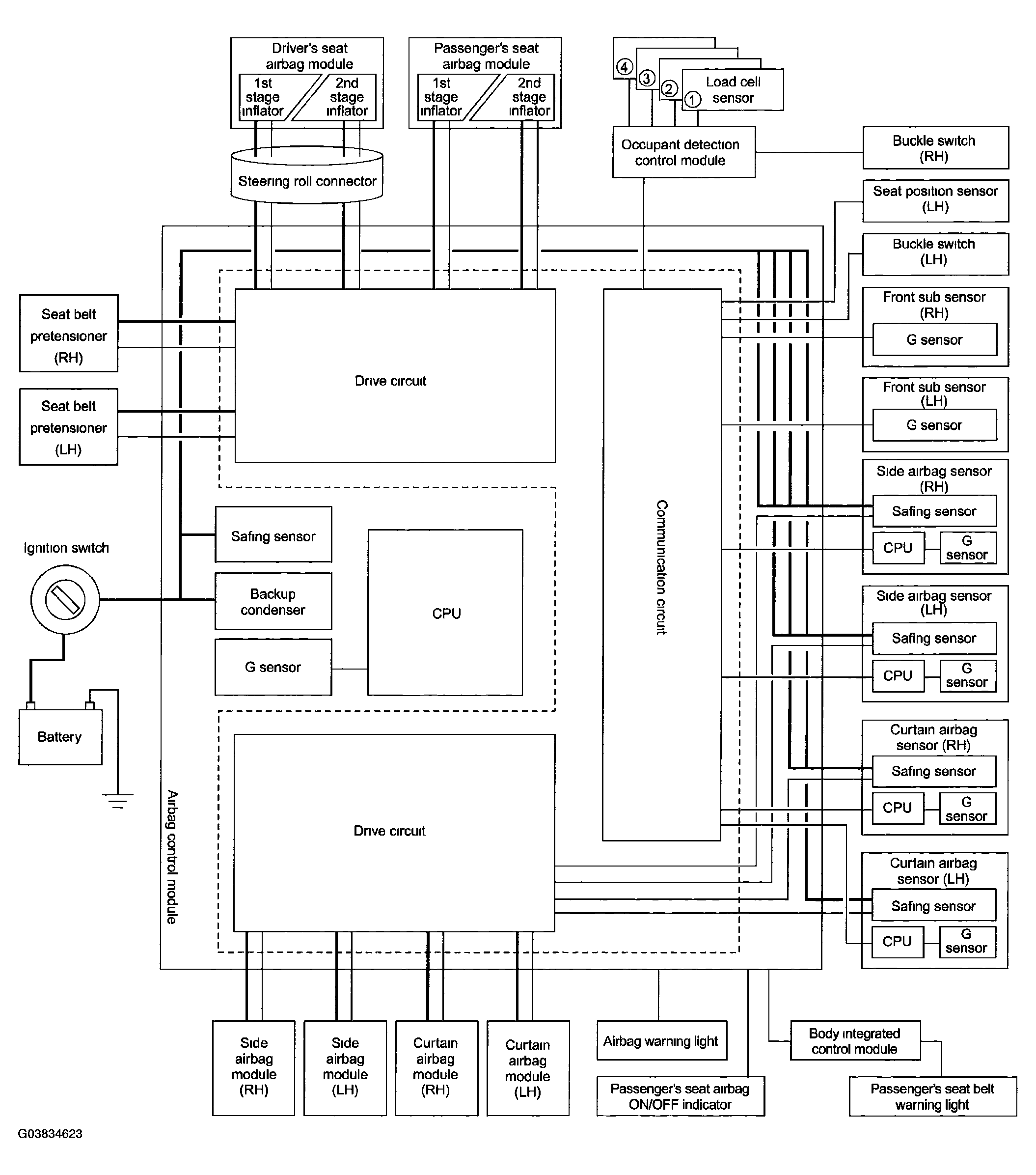

Fig 1: System Components Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
