Power Cylinder

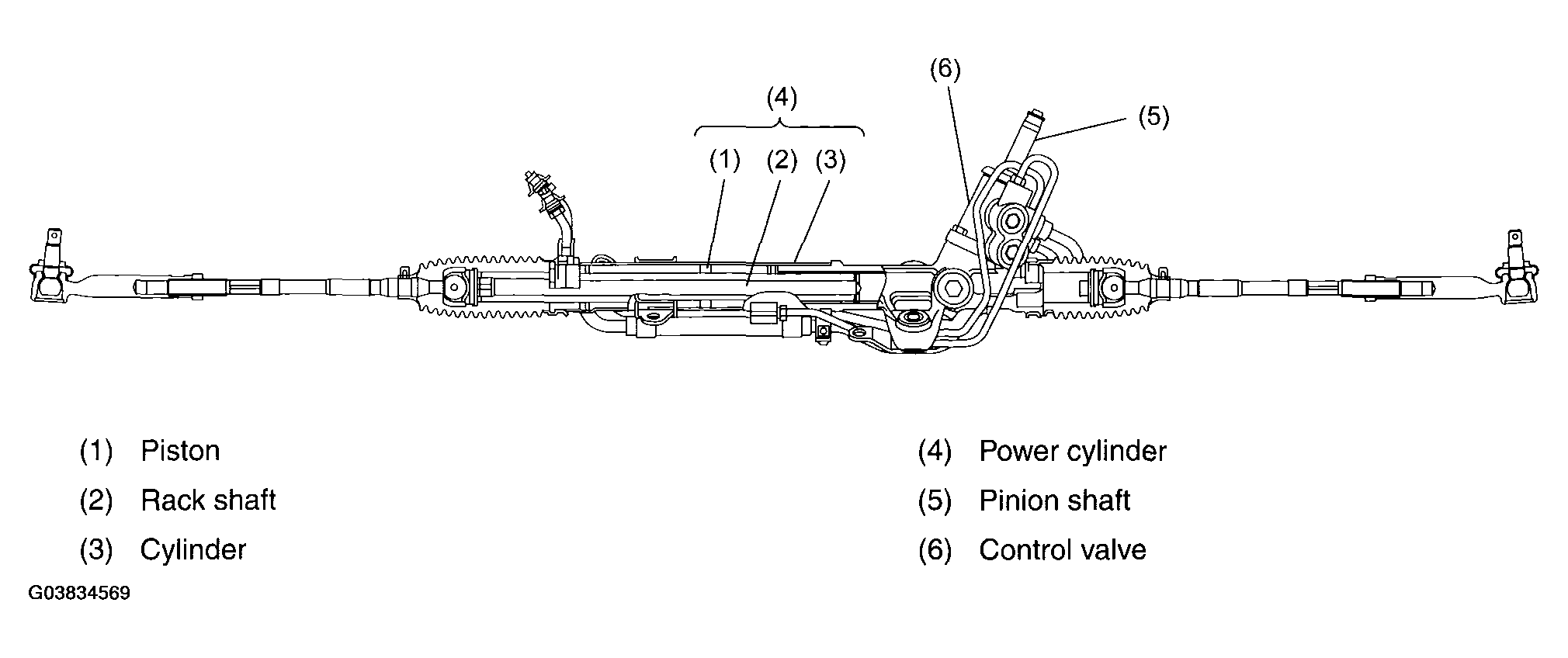

The gearbox integrates the control valve and power cylinder into a single unit. The rack shaft serves as a power cylinder piston. The rotary control valve is located around the pinion shaft.
The rotary control valve and power cylinder are connected to each other by two hydraulic fluid pipes.
