Operating Cylinder

5MT non-turbo model

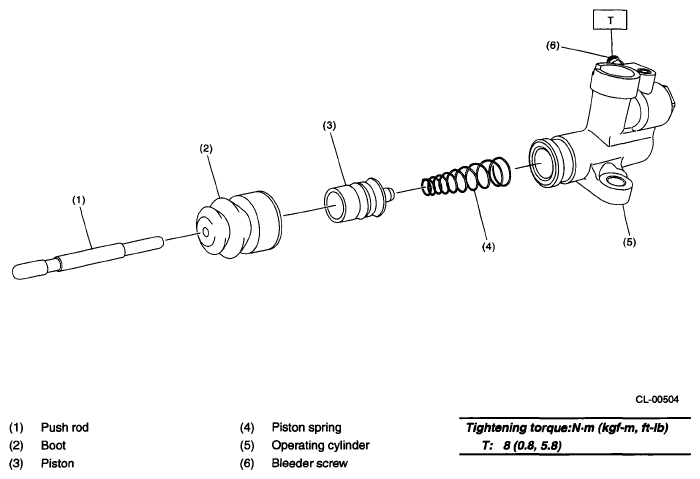

Fig 1: Operating Cylinder Replacement Components (5MT Non-Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
5MT turbo model

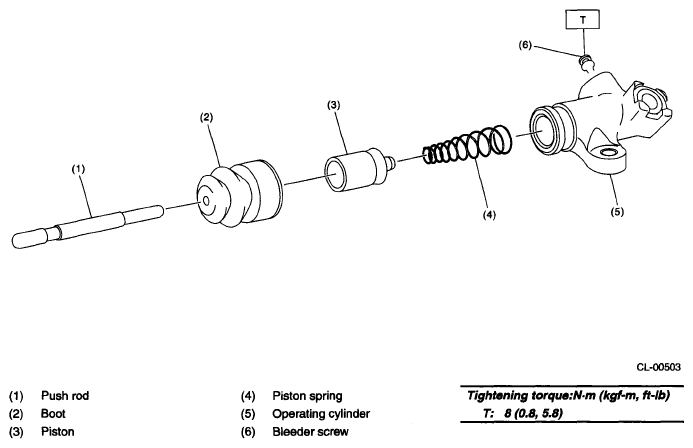

Fig 2: Operating Cylinder Replacement Components (5MT Turbo Model) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
