Subaru
›
2008
›
Outback Limited, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System (H4SO)
›
General Description
›
Components With Torque Specifications
›
Fuel Line
Fuel Line

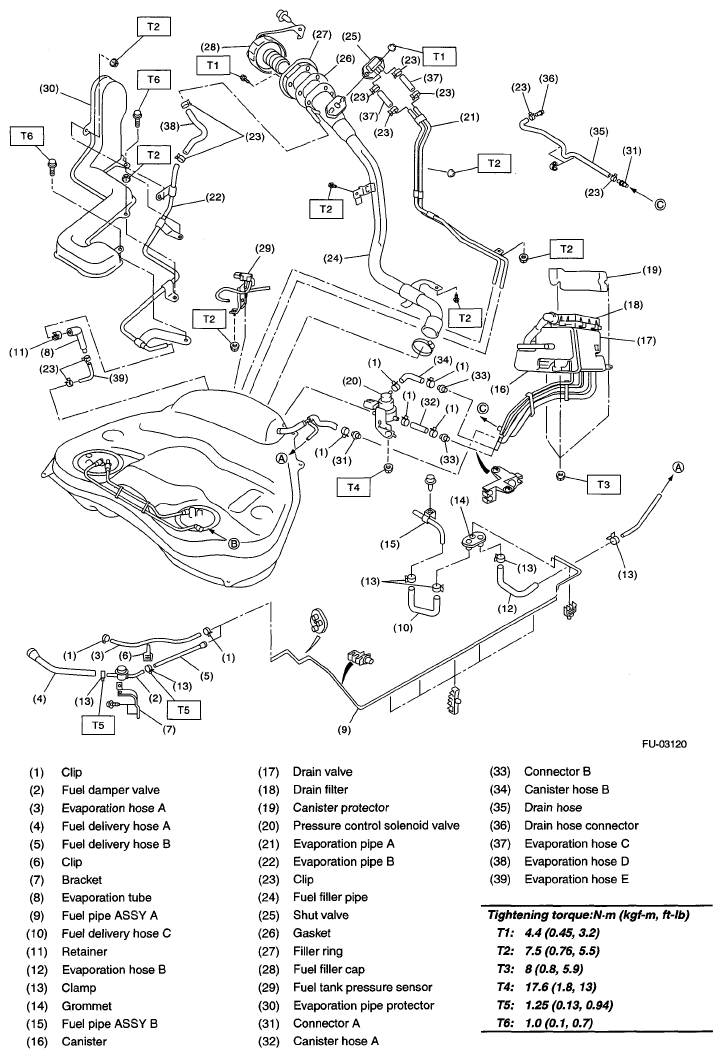

Fig 1: Fuel Line Disassembling View With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
