Automatic Transmission (4AT)
›
General Description
›
Components With Torque Specifications
›
Transfer And Extension Case
›
MP-T model
MP-T model

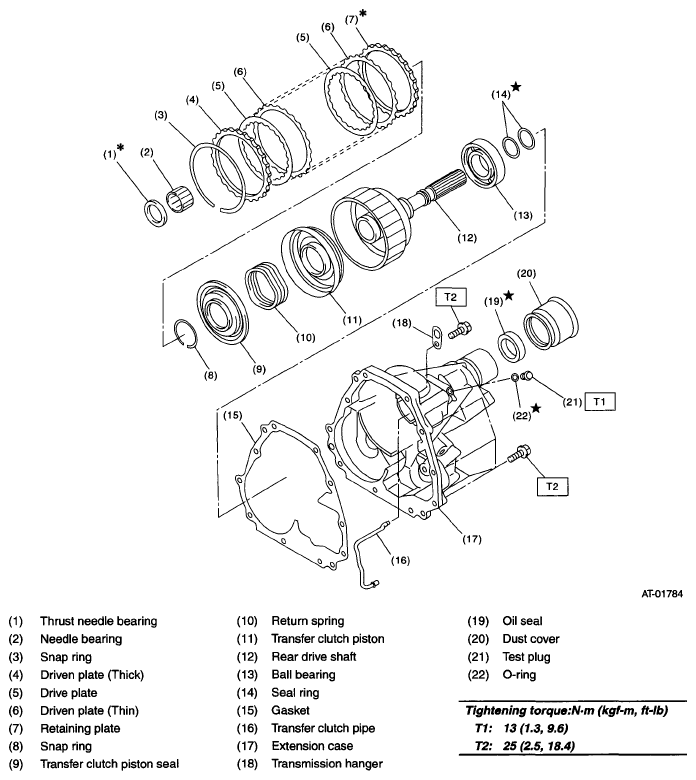

Fig 1: Transfer And Extension Case Replacement Components With Torque Specifications - MP-T Model
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
