Center Structure
NOTE:
- Longitudinal dimensions are projected dimensions.
- The height dimensions are the vertical distances from the gauge point on the assumed horizontal line through the side sill flange joint (bending angle point).
- Diagonal dimensions are the actual dimensions between reference points. The values in brackets are projected dimensions for reference.

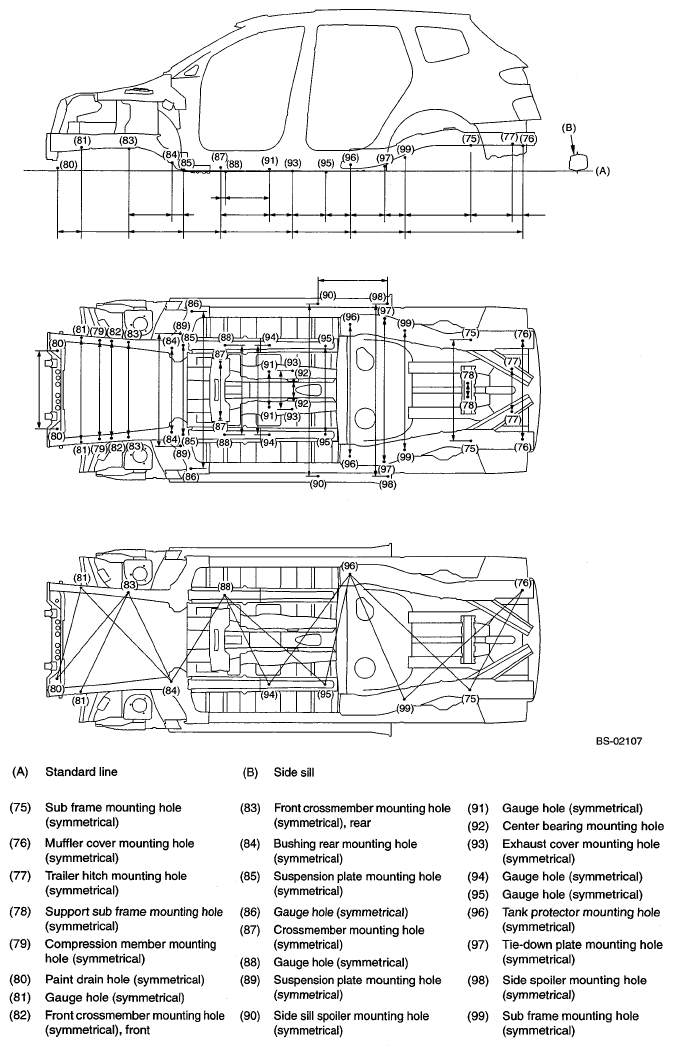

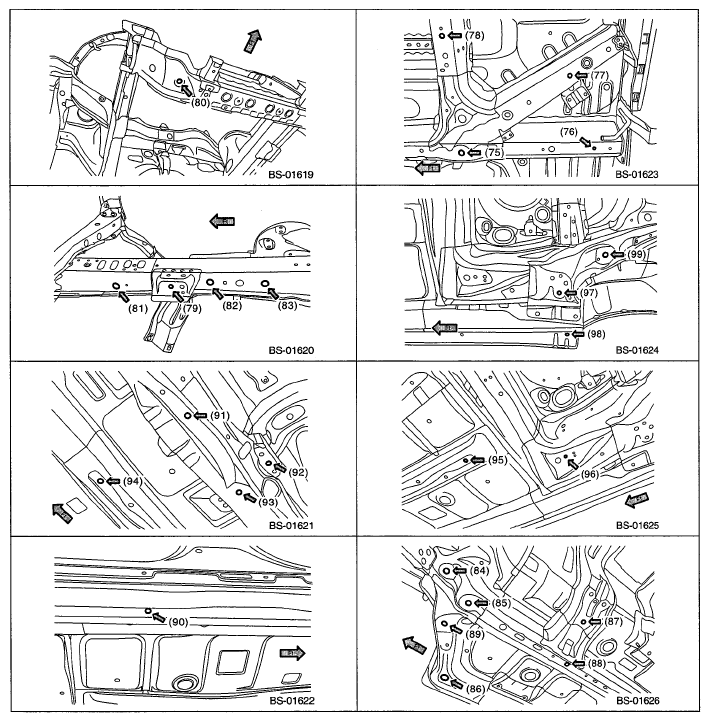

DATUM DIMENSION REFERENCE
| Point of measurement | Datum dimension mm (in) |
|---|---|
| Datum line - (75) | 225 (8.86) |
| Datum line - (76) | 228 (8.98) |
| Datum line - (77) | 238 (9.37) |
| Datum line - (80) | 27 (1.06) |
| Datum line - (81) | 204 (8.03) |
| Datum line - (83) | 218 (8.58) |
| Datum line - (84) | 70 (2.76) |
| Datum line - (85) | 10 (0.39) |
| Datum line - (87) | 30 (1.18) |
| Datum line - (88) | -10 (-0.39) |
| Datum line - (91) | 16 (0.63) |
| Datum line - (93) | -5 (-0.20) |
| Datum line - (95) | -7 (-0.28) |
| Datum line - (96) | 62 (2.44) |
| Datum line - (97) | 45 (1.77) |
| Datum line - (99) | 124 (4.88) |
| (75) - (77) | 362 (14.25) |
| (75) - (99) | 573 (22.56) |
| (76) - (77) | 93 (3.66) |
| (76) - (99) | 1,028 (40.47) |
| (80) - (81) | 210 (8.27) |
| (81) - (83) | 408 (16.06) |
| (83) - (84) | 370 (14.57) |
| (83) - (85) | 471 (18.54) |
| (84) - (85) | 101 (3.98) |
| (85) - (87) | 339 (13.35) |
| (87) - (88) | 42 (1.65) |
| (87) - (91) | 457 (17.99) |
| (87) - (93) | 665 (26.18) |
| (88) - (91) | 415 (16.34) |
| (91) - (93) | 208 (8.19) |
| (93) - (95) | 307 (12.09) |
| (93) - (96) | 563 (22.17) |
| (95) - (96) | 256 (10.08) |
| (96) - (97) | 276 (10.87) |
| (96) - (99) | 455 (17.91) |
| (97) - (99) | 179 (7.05) |
| (75) RH - (75) LH | 895 (35.24) |
| (76) RH - (76) LH | 876 (34.49) |
| (77) RH - (77) LH | 376 (14.80) |
| (78) RH - (78) LH | 120 (4.72) |
| (79) RH - (79) LH | 868 (34.17) |
| (80) RH - (80) LH | 696 (27.40) |
| (81) RH - (81) LH | 926 (36.46) |
| (82) RH - (82) LH | 862 (33.94) |
| (83) RH - (83) LH | 840 (33.07) |
| (84) RH - (84) LH | 746 (29.37) |
| (85) RH - (85) LH | 796 (31.34) |
| (86) RH - (86) LH | 1,402 (55.20) |
| (87) RH - (87) LH | 504 (19.84) |
| (88) RH - (88) LH | 796 (31.34) |
| (89) RH - (89) LH | 1,002 (39.45) |
| (90) RH - (90) LH | 1,536 (60.47) |
| (91) RH - (91) LH | 320 (12.60) |
| (92) RH - (92) LH | 168 (6.61) |
| (93) RH - (93) LH | 343 (13.50) |
| (94) RH - (94) LH | 796 (31.34) |
| (95) RH - (95) LH | 796 (31.34) |
| (96) RH - (96) LH | 1,167 (45.94) |
| (97) RH - (97) LH | 1,280 (50.39) |
| (98) RH - (98) LH | 1,536 (60.47) |
| (99) RH - (99) LH | 1,060 (41.73) |
| (75) RH - (76) LH | 996 (39.21) |
| (75) RH - (96) LH | 1,465 (57.68) |
| (76) LH - (99) RH | 1,416 (55.75) |
| (80) RH - (81) LH | 856 (33.70) |
| (80) RH - (83) LH | 1,004 (39.53) |
| (81) RH - (83) LH | 973 (38.31) |
| (81) LH - (84) RH | 1,150 (45.28) |
| (83) LH - (84) RH | 887 (34.92) |
| (84) RH - (88) LH | 913 (35.94) |
| (88) LH - (94) RH | 899 (35.39) |
| (88) LH - (95) RH | 1,224 (48.19) |
| (94) RH - (96) LH | 1,248 (49.13) |
| (95) RH - (96) LH | 1,017 (40.04) |
| (96) LH - (99) RH | 1,204 (47.4) |
NOTE:
- Other datum points except for (92) are symmetrical.
- Longitudinal dimensions are projected dimensions.
- The height dimensions are the vertical distances from the gauge point on the assumed horizontal line through the side sill flange joint (bending angle point).
- Diagonal dimensions are the actual dimensions between reference points.
- The left and right dimensions are the actual dimensions between reference points.
