Front Structure

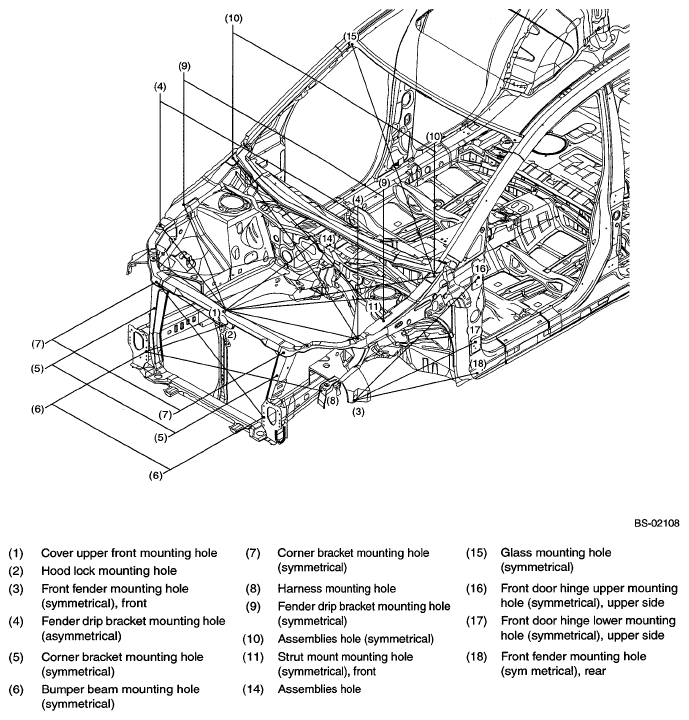

Fig 1: Identifying Front Structure Reference Points

G05672056

Courtesy of SUBARU OF AMERICA, INC.

DATUM DIMENSION REFERENCE

Point of measurement	Datum dimension mm (in)
(1) - (3) RH	567 (22.32)
(1) - (3) LH	567 (22.32)
(1) - (4) RH	779 (30.67)
(1) - (4) LH	797(31.38)
(1) - (9) RH	888 (34.96)
(1) - (10) LH	1,147 (45.16)
(1) - (11) LH	807 (31.77)
(1) - (14)	667 (26.26)
(2) - (6) RH	550 (21.65)
(2) - (7) RH	469 (18.46)
(4) - (4)	1,487 (58.54)
(4) LH - (10) RH	1,636 (64.41)
(5) - (5)	894 (35.20)
(6) - (6)	858 (33.78)
(6) LH - (7) RH	980 (38.58)
(6) RH - (8)	1,123 (44.21)
(7) - (7)	930 (36.61)
(9) - (9)	1,522 (59.92)
(9) LH - (10) RH	1,584 (62.36)
(10) - (10)	1,548 (60.94)
(10) LH - (15) RH	1,651 (65.00)
(16) RH - (3) RH	1,019 (40.12)
(17) RH - (3) RH	954 (37.56)
(18) RH - (3) RH	1,016 (40.00)

NOTE:

The reference points (1) and (2) are at the body center, while the other points except for (8) and (14) are left-right symmetrical.
The dimensions are the actual dimensions between the reference points.

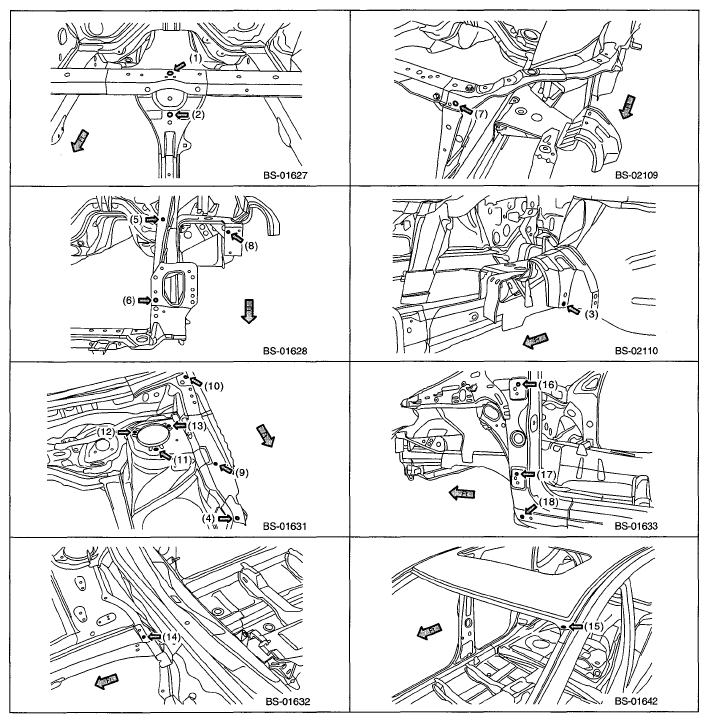

Fig 2: Locating Front Structure Reference Points
Courtesy of SUBARU OF AMERICA, INC.
