Seat System - Seats
›
General Description
›
Components With Torque Specifications
›
Second-Row Seats
Second-Row Seats

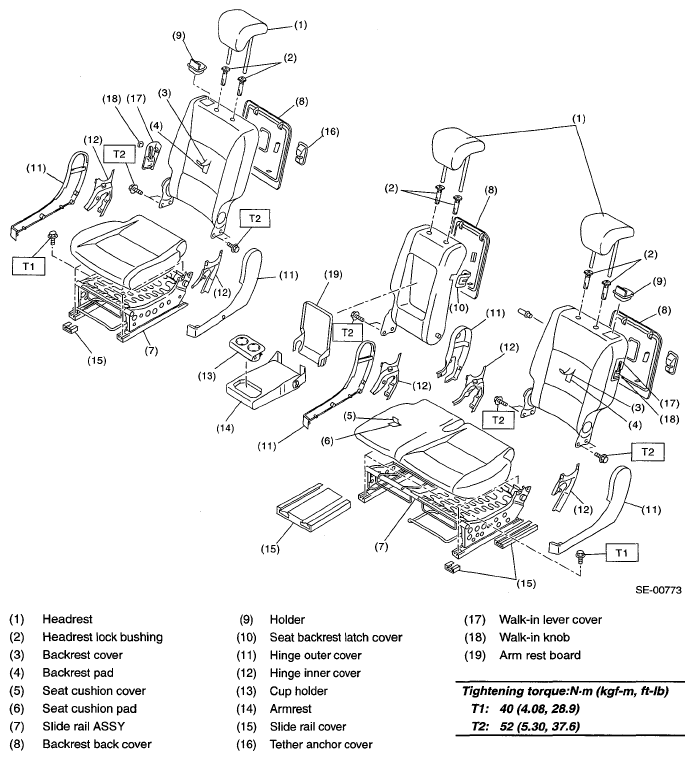

Fig 1: Second-Row Seats Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
