Control Module I/O Signal: Wiring Diagram

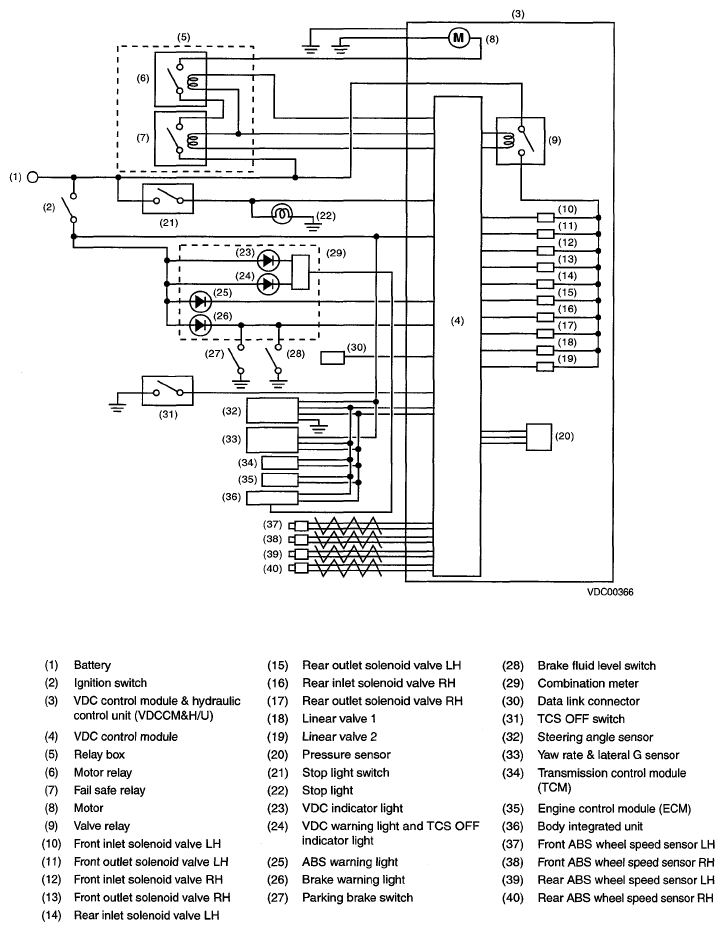

Fig 1: Identifying Control Module I/O - Wiring Diagram
G05664731Courtesy of SUBARU OF AMERICA, INC.
