Fuel Injection System (H6DO)
›
General Description
›
Components With Torque Specifications
›
Fuel Injector
Fuel Injector

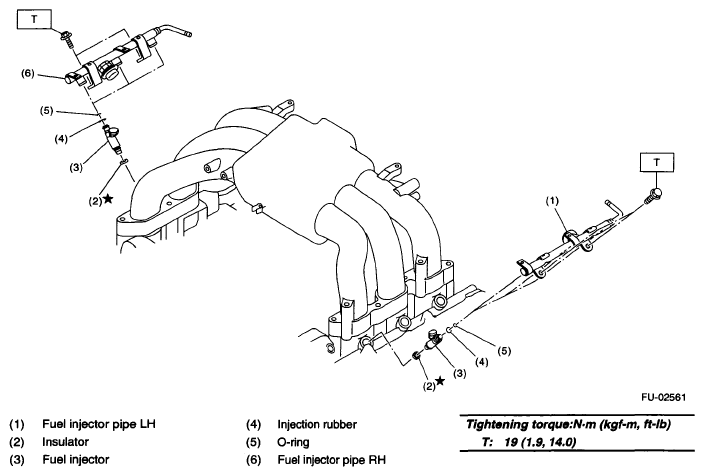

Fig 1: Exploded View Of Fuel Injector Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
