General Description
›
Components With Torque Specifications
›
Intake Manifold
Intake Manifold

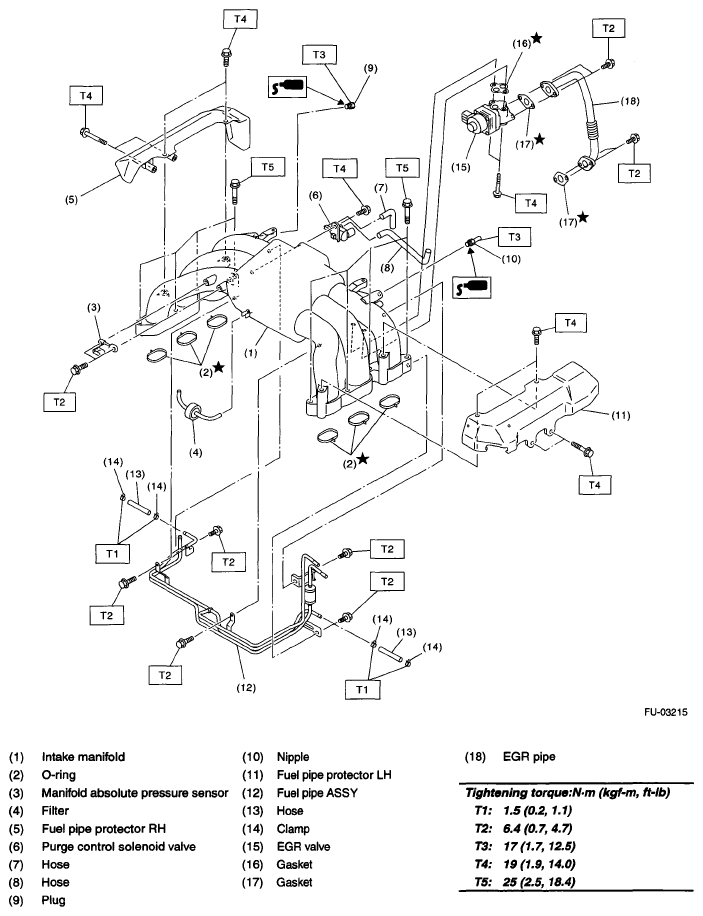

Fig 1: Exploded View Of Intake Manifold Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
