Fuel Injection System (H6DO)
›
General Description
›
Components With Torque Specifications
›
Sensor
Components With Torque Specifications: Sensor

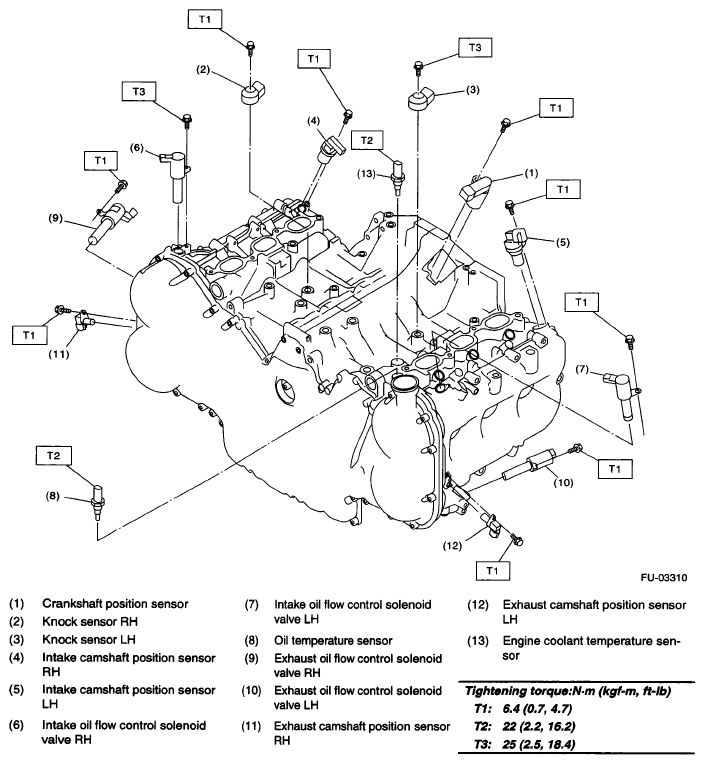

Fig 1: Exploded View Of Sensors With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
