Automatic Transmission (5AT)
›
General Description
›
Components With Torque Specifications
›
Transfer Case, Extension Case & Reduction Gear
Transfer Case, Extension Case & Reduction Gear

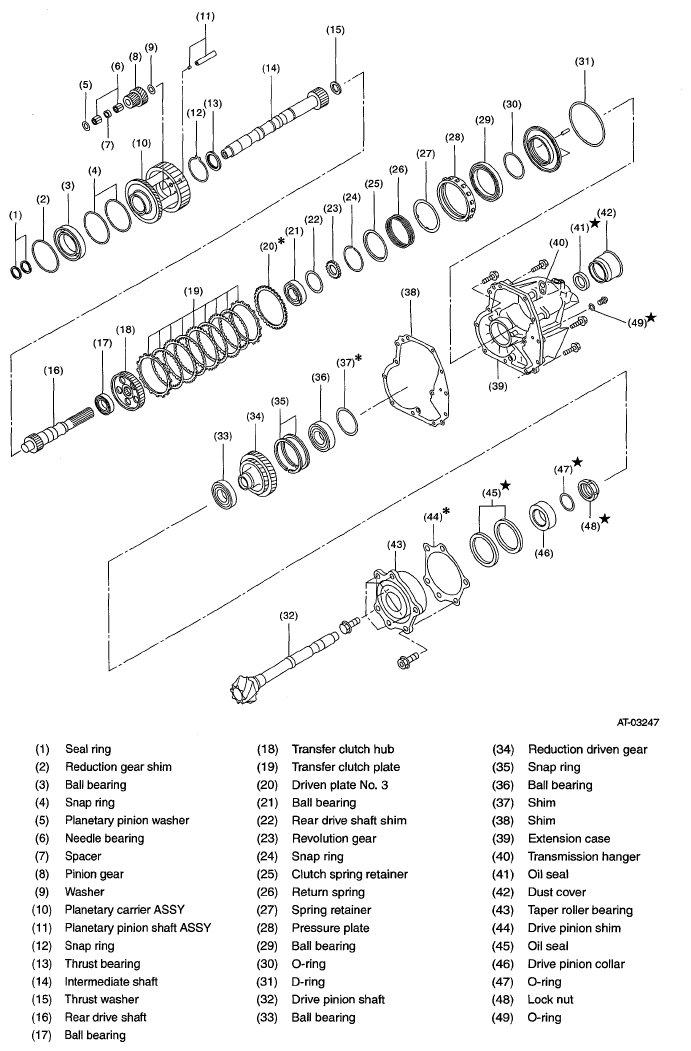

Fig 1: Exploded View Of Transfer Case, Extension Case And Reduction Gear
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
