Abs - Vehicle Dynamics Control (VDC) System
›
General Description
›
Components With Torque Specifications
›
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)
VDC Control Module And Hydraulic Control Unit (VDCCM&H/U)

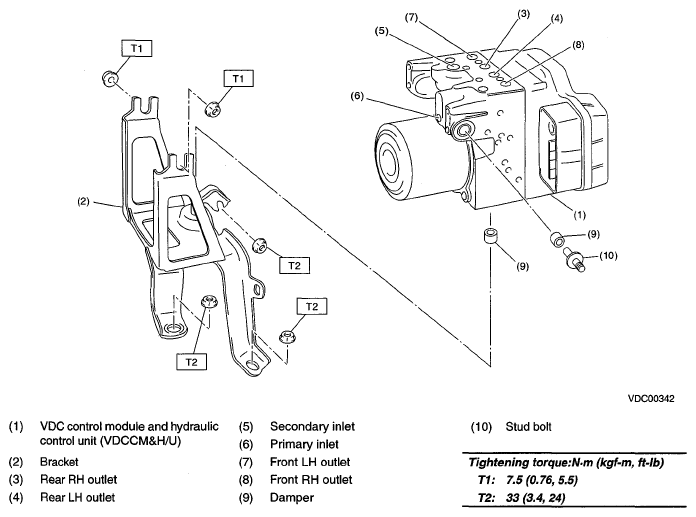

Fig 1: VDC Control Module And Hydraulic Control Unit With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
