General Description
›
Components With Torque Specifications
›
VDC Control Module & Hydraulic Control Unit (VDCCM & H/U)
VDC Control Module & Hydraulic Control Unit (VDCCM & H/U)

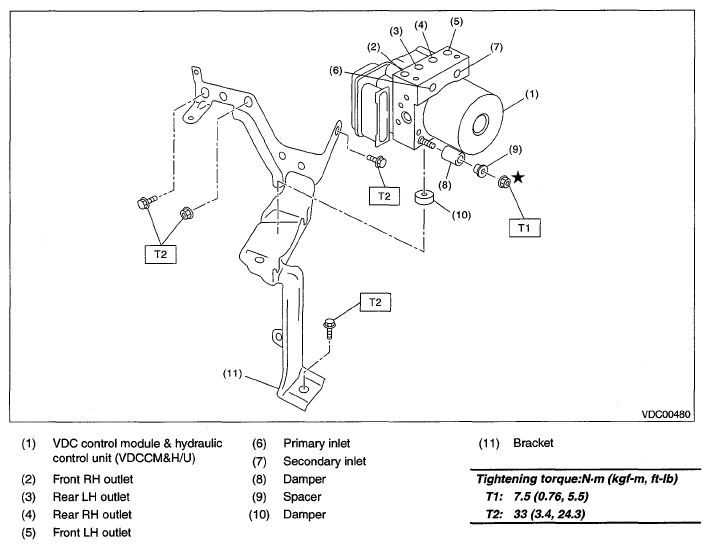

Fig 1: VDC Control Module & Hydraulic Control Unit Component (VDCCM & H/U) With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
